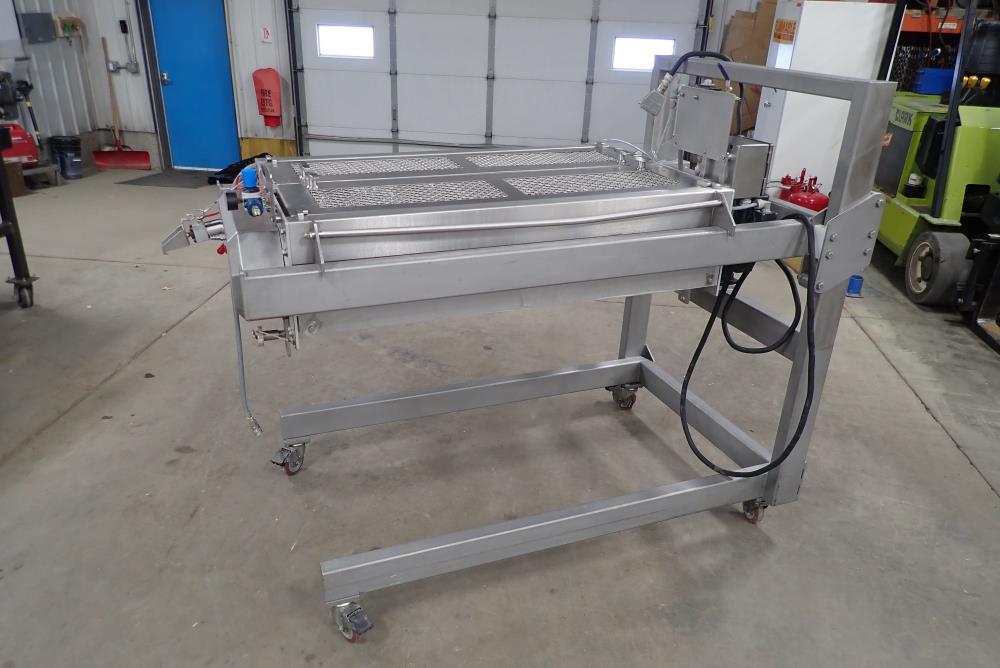

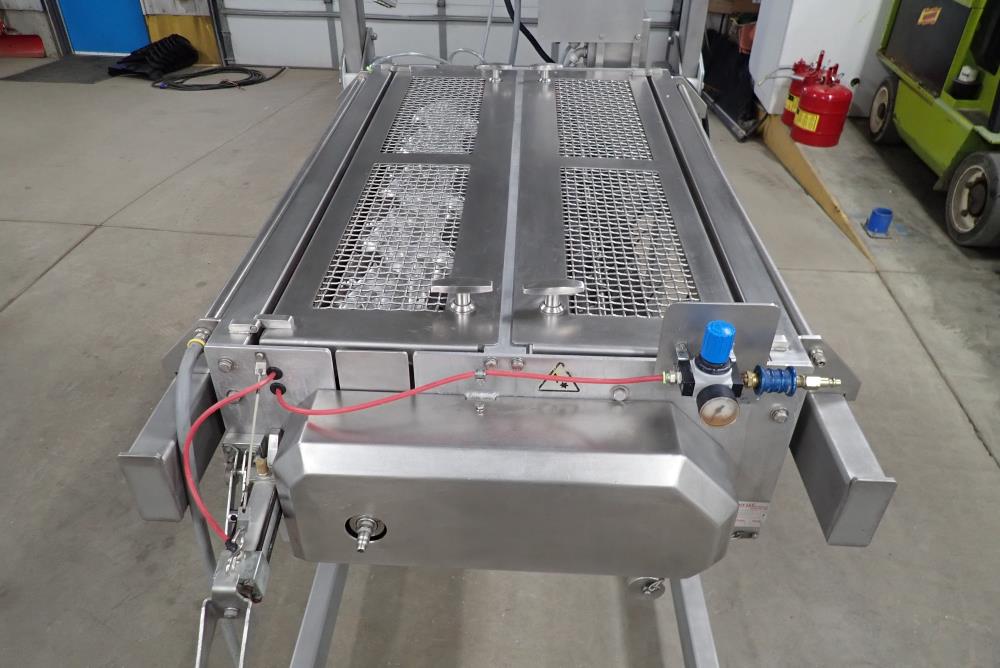

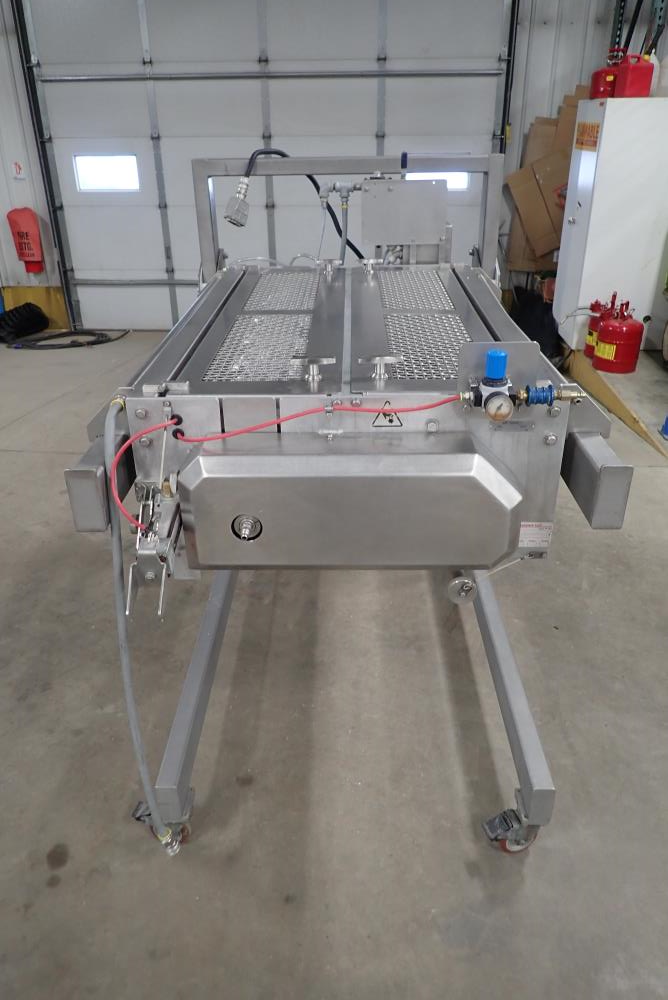

Moline portable donut cutter-picker unit
Item #: 5066002
Description

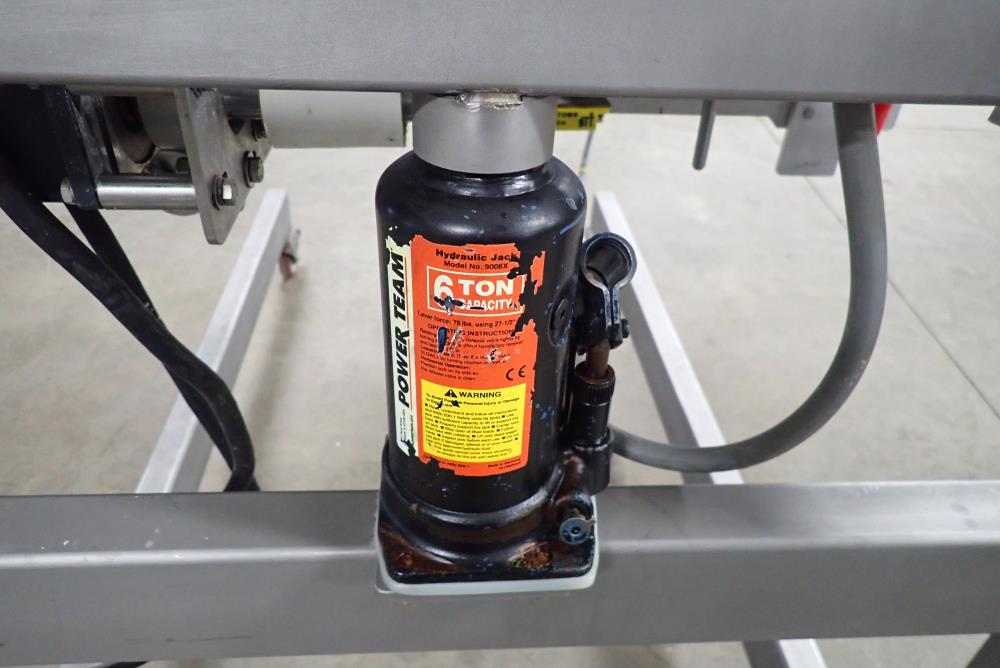

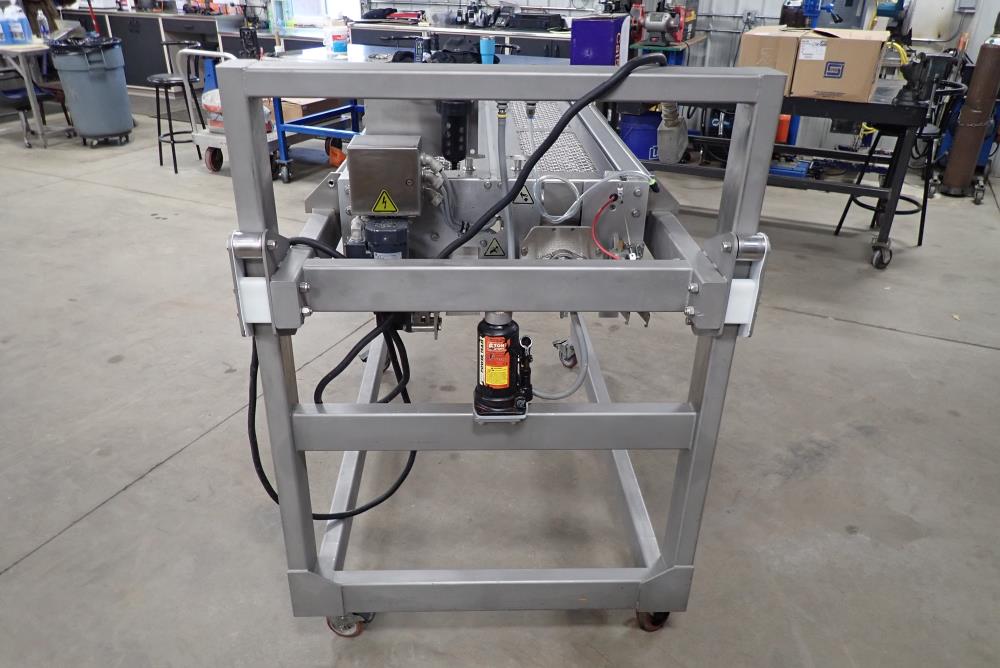

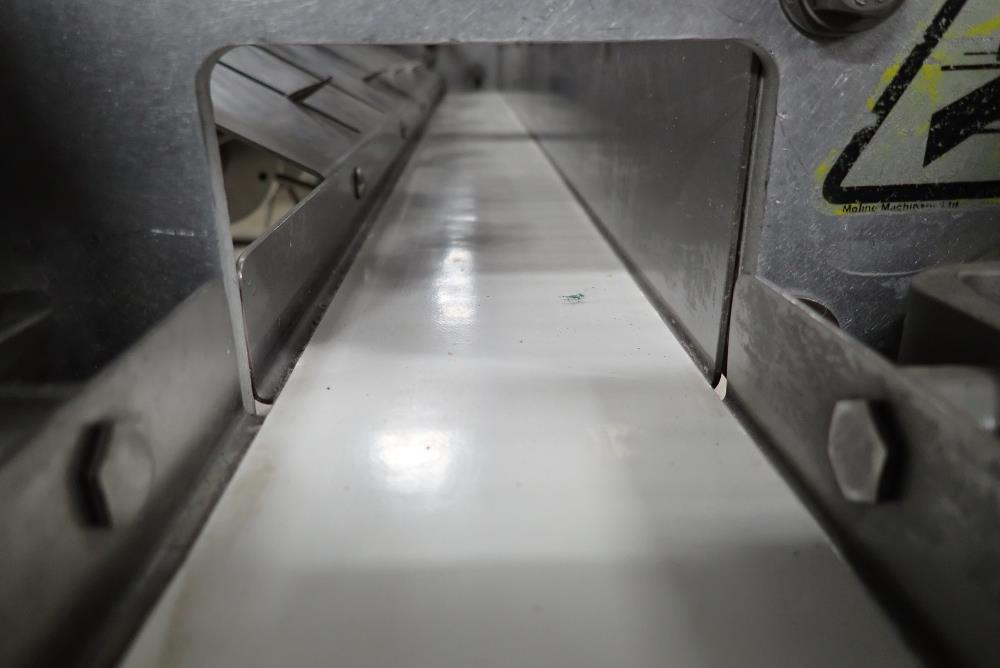

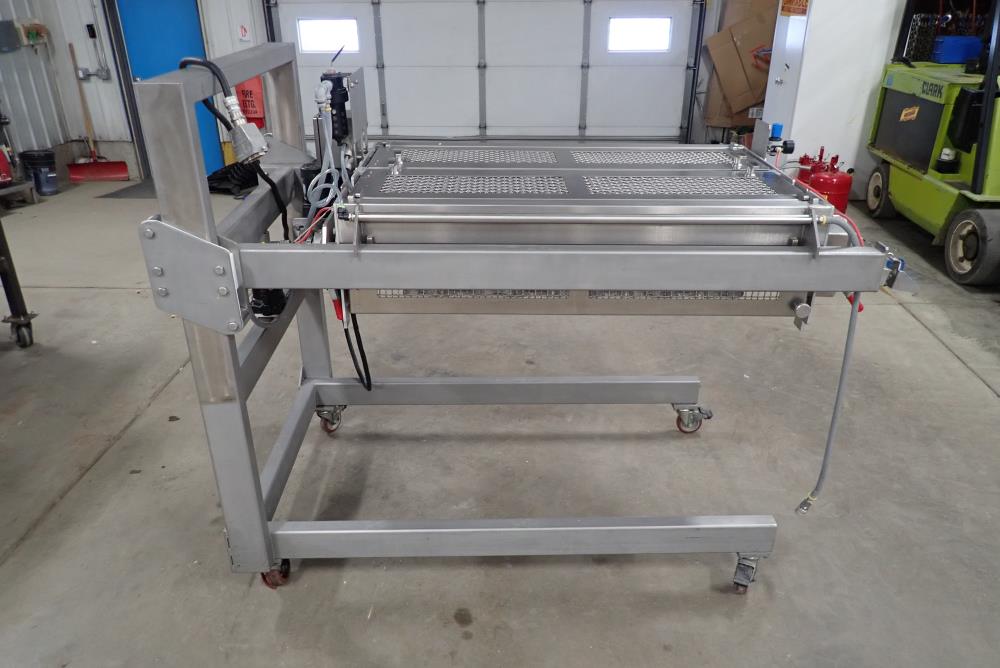

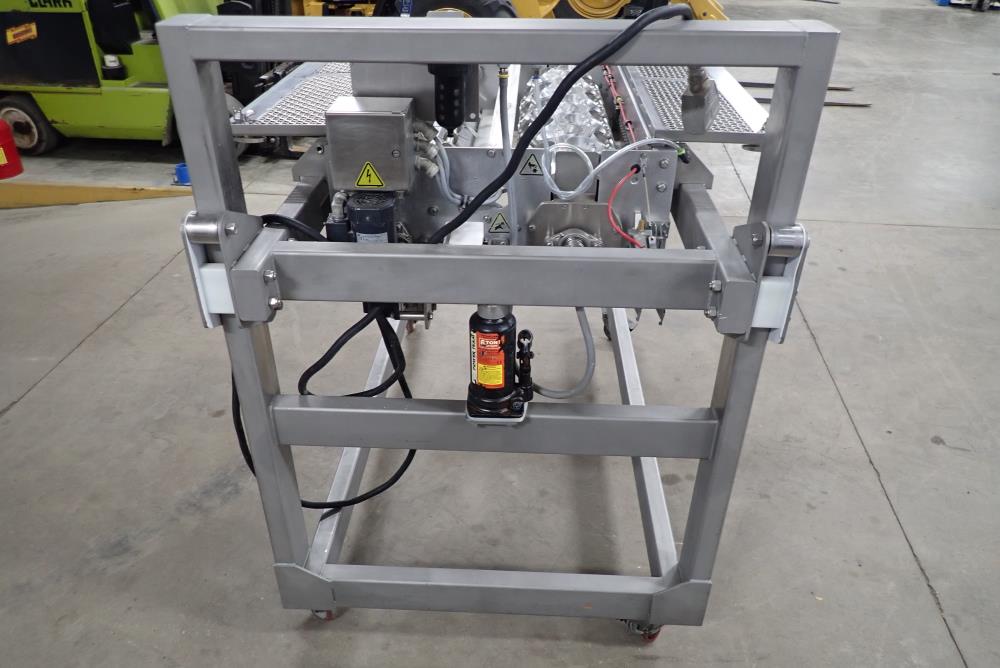

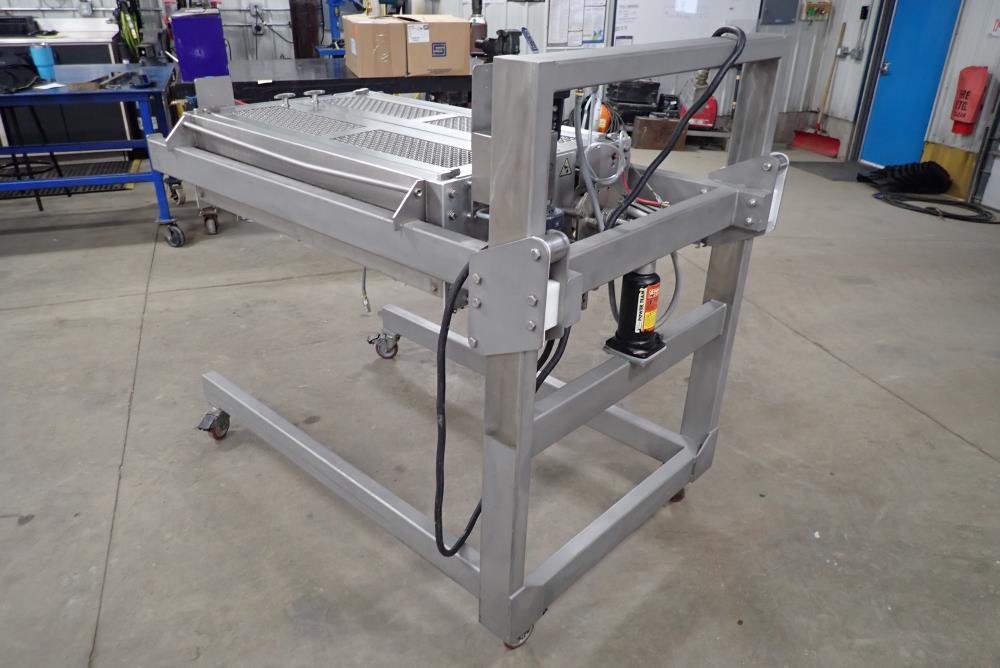

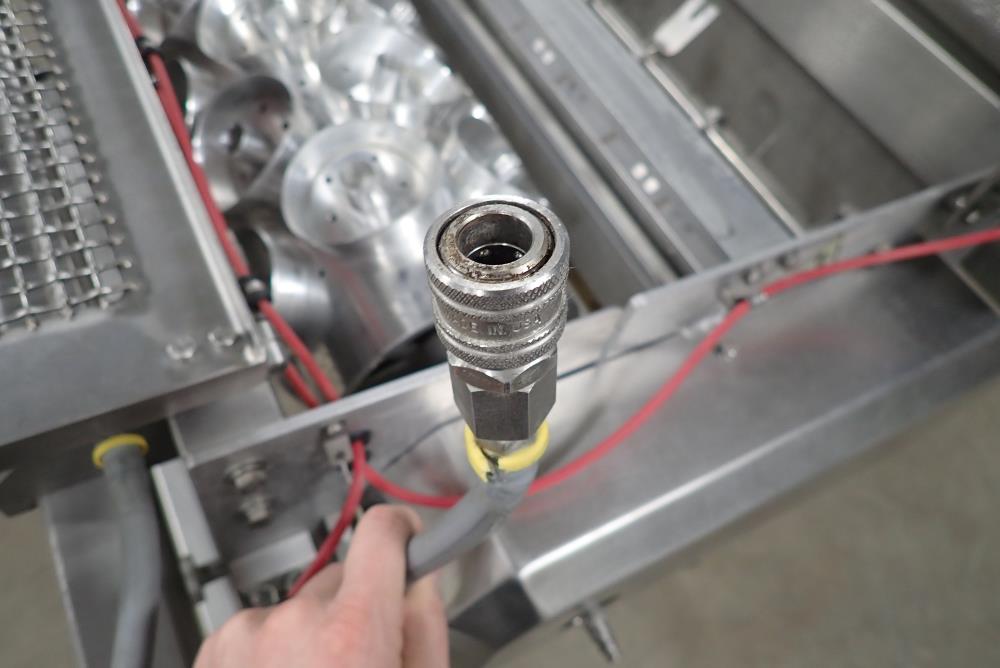

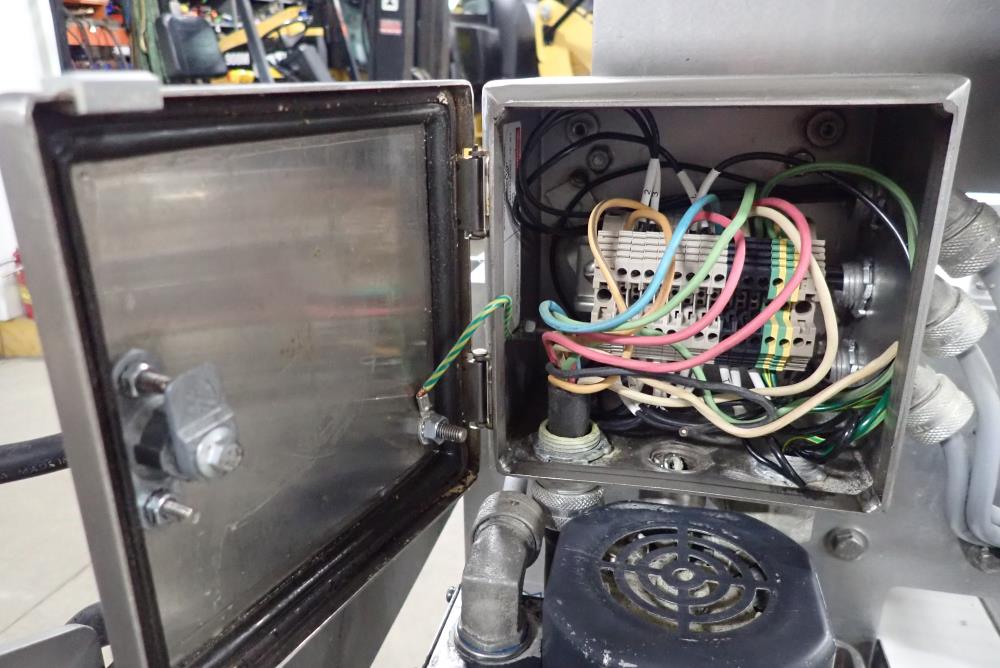

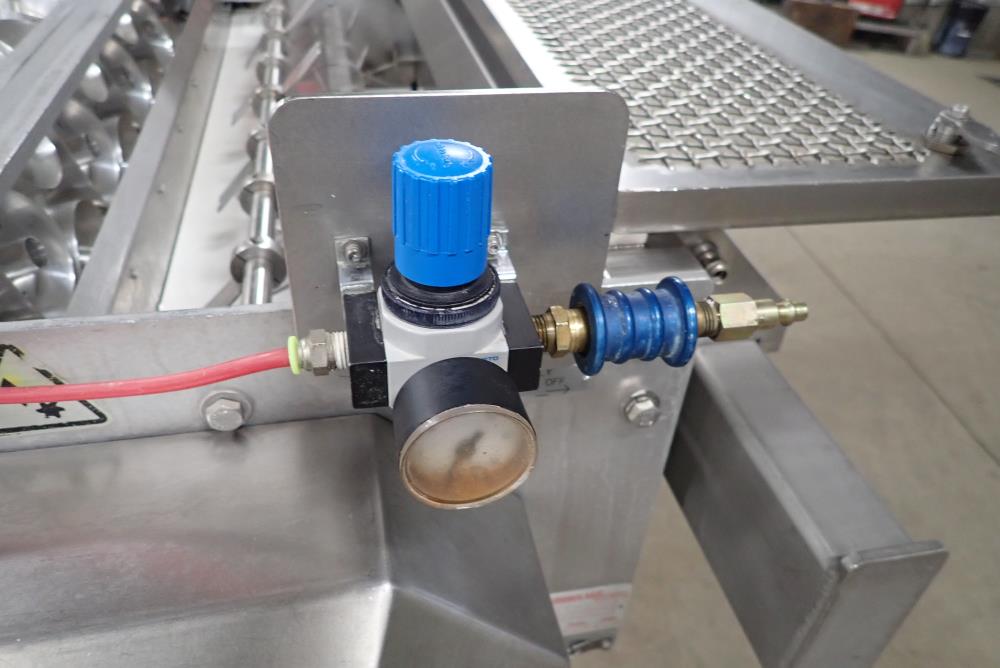

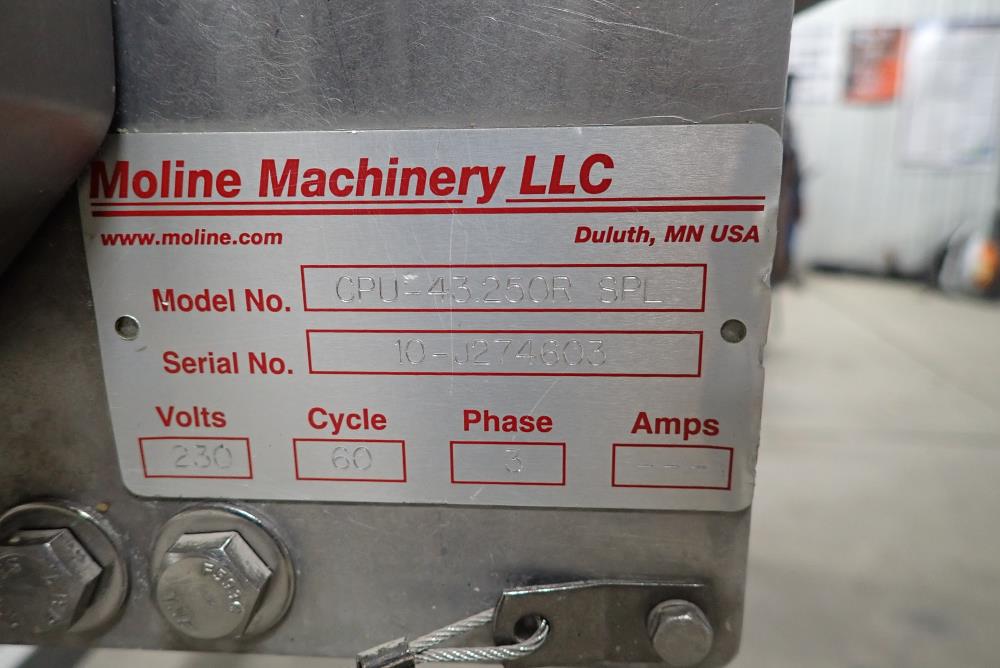

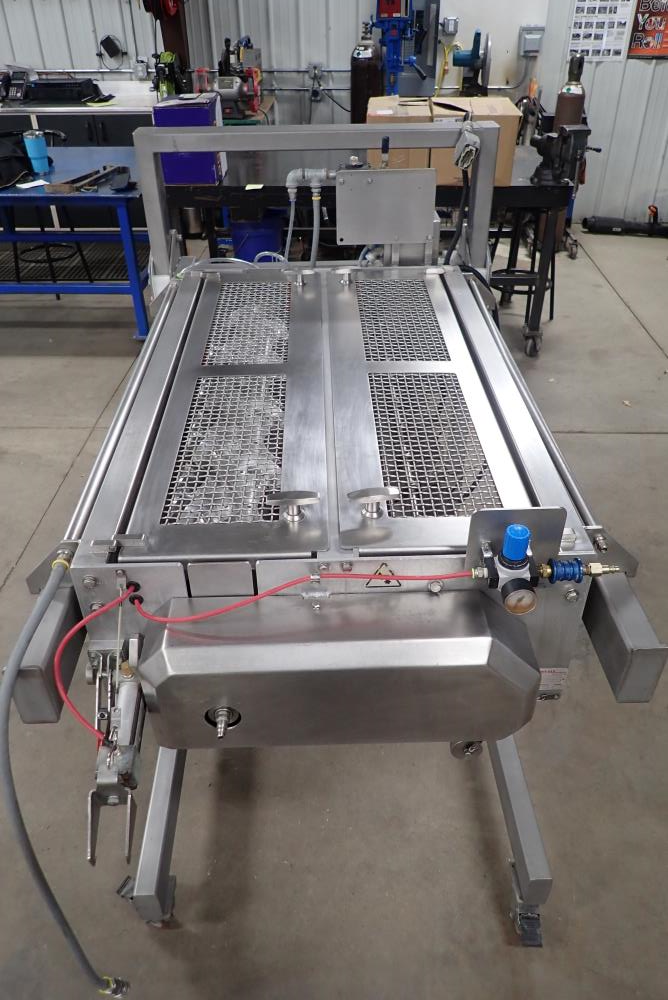

Moline portable donut cutter-picker unit. Model CPU-43.250R SPL. SN 10-J274603. All stainless steel construction. Currently set up to run 4 in. diamter donuts with 1 in. diameter holes, for a 36 in. wide sheet of dough. 41 in. wide drum x 9 in. diameter. Includes scrap removal conveyor 54 in. long x 3 in. wide x 38 in. tall. 33 in. tall drum height, with adjustable SS stand, hydraulic manual raise. Pneumatic requirements 5 cfm @ 100psi. Electrical requirements 230 volt, 3 phase.

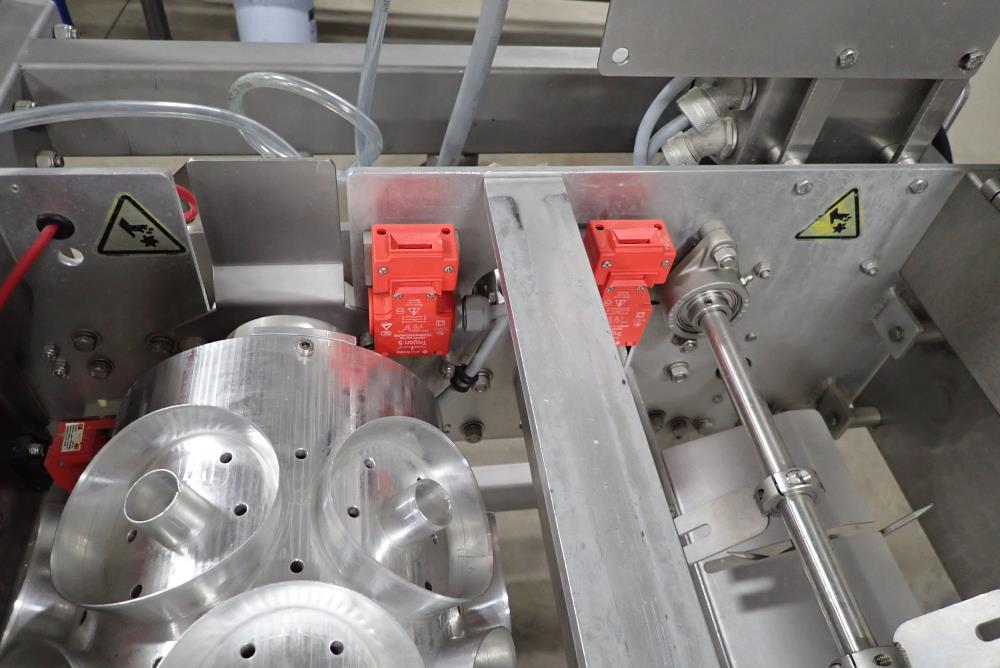

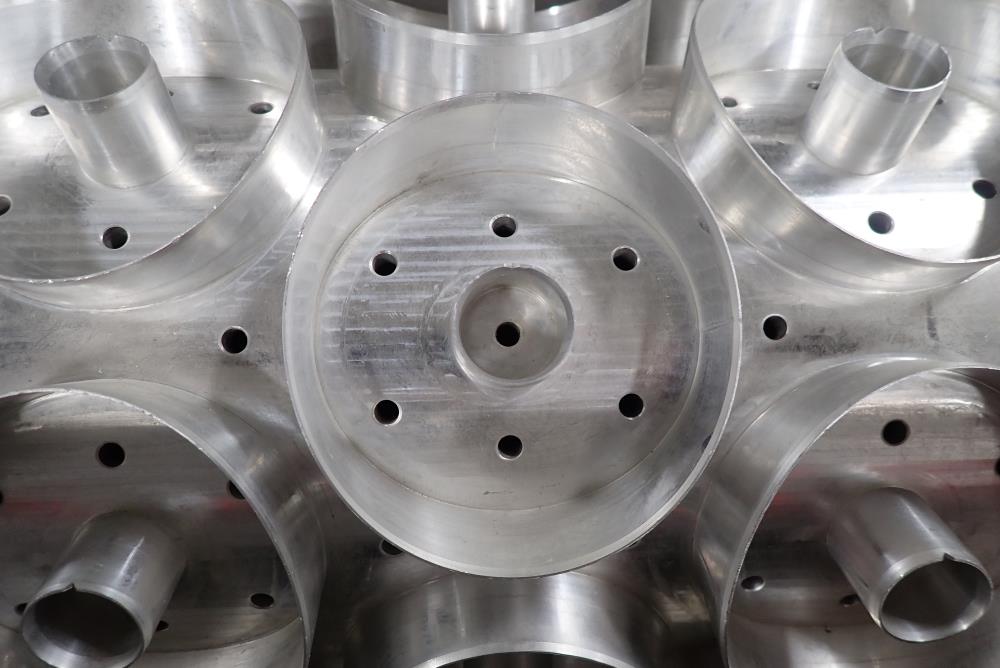

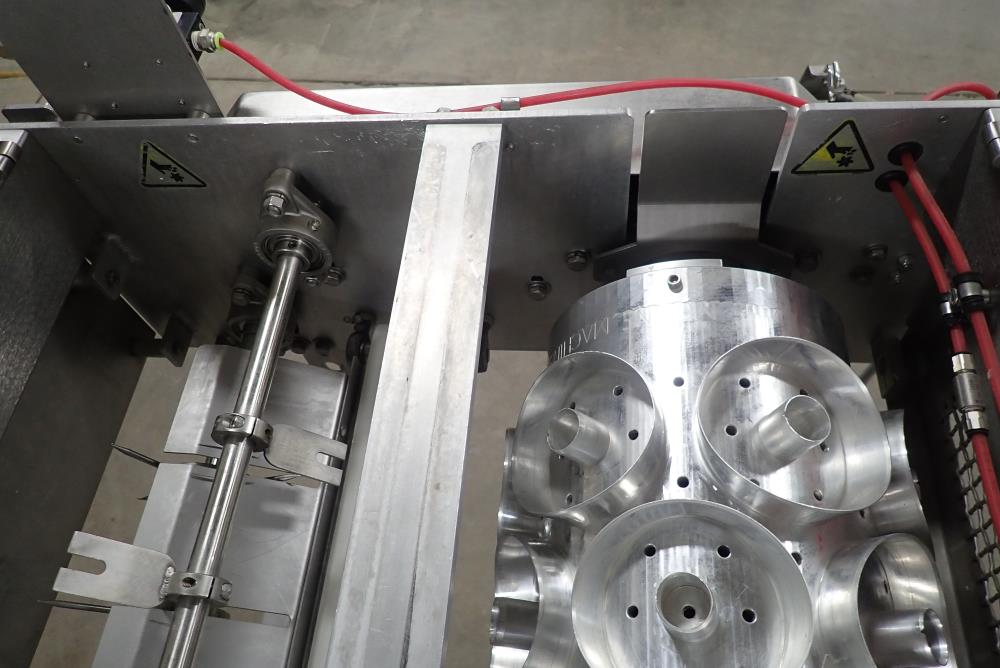

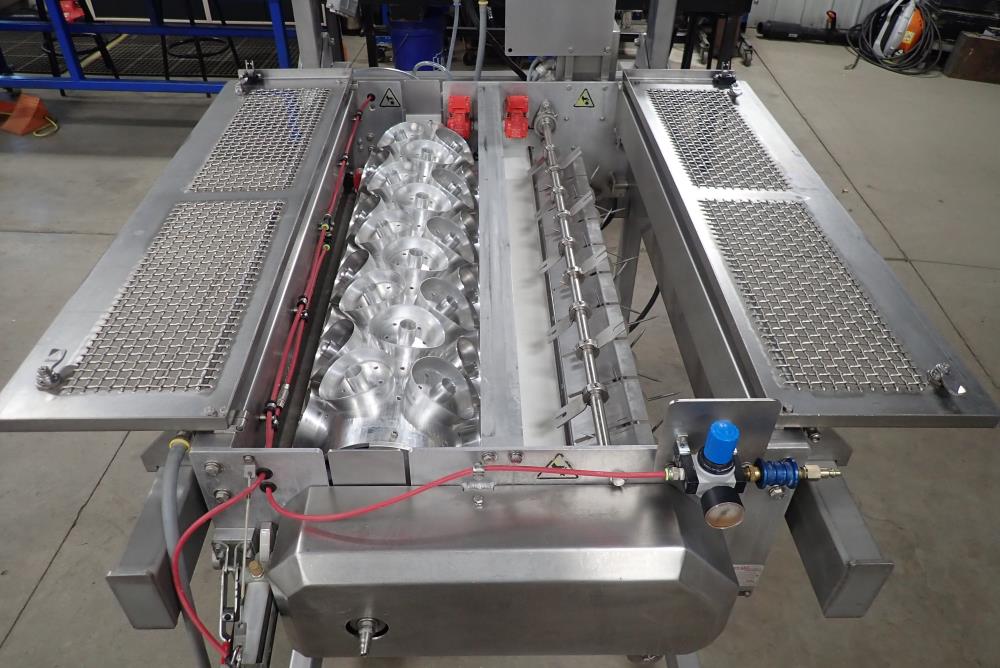

- The Moline portable donut cutter-picker is an efficient, compact design used to cut donuts and pick out the center holes as the dough sheet travels through the machine. The cutter is powered by the movement of the conveyor belt and activates the picker assembly via a series of chains. The cutter, picker rods and paddles are synchronized to “cut and pick” at the proper time for smooth, continuous operation. The donut holes that have been removed from the center of the donuts are then deposited onto a gearmotor-driven cross conveyor and removed from the make-up table for reuse as scrap. Guards are safety interlocked to prevent access to the rotating components during operation. The unit is typically controlled through the production system’s operator interface. Stainless steel construction provides efficient sanitation and durability
- The unit is typically controlled through the production system’s operator interface.

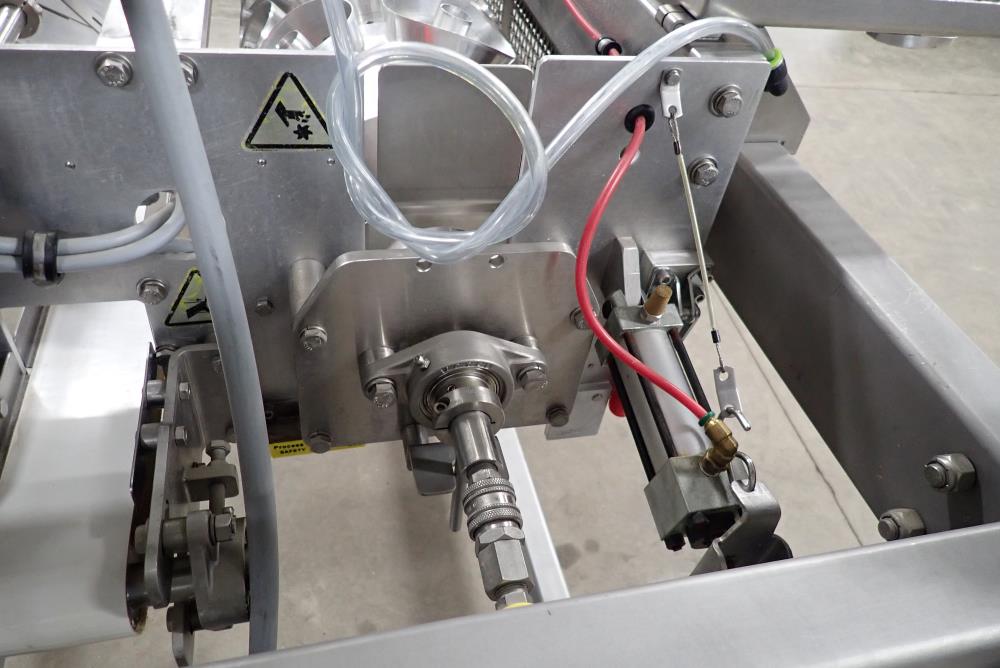

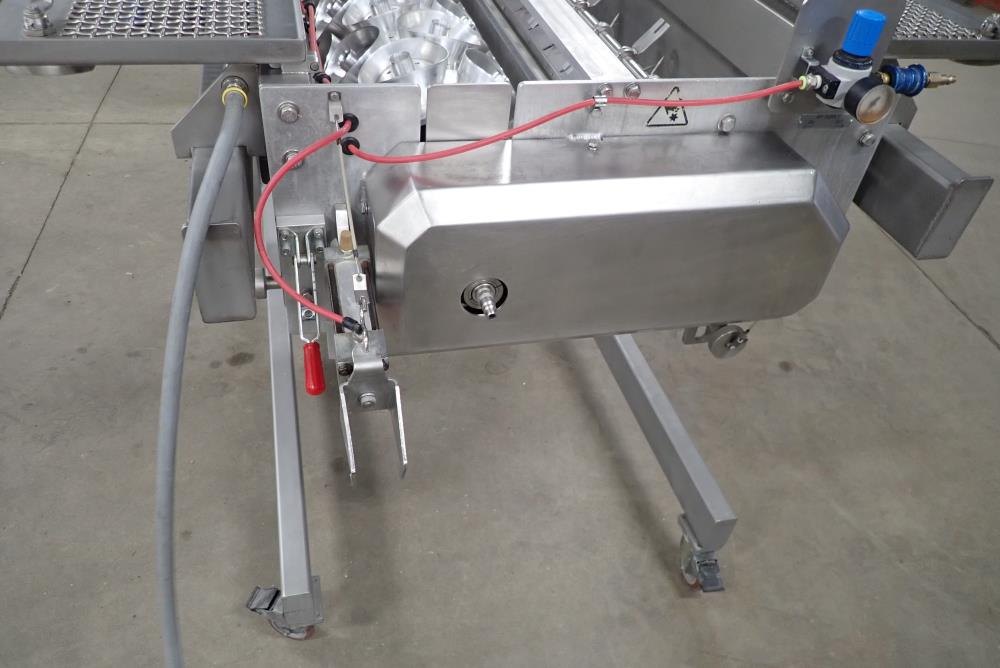

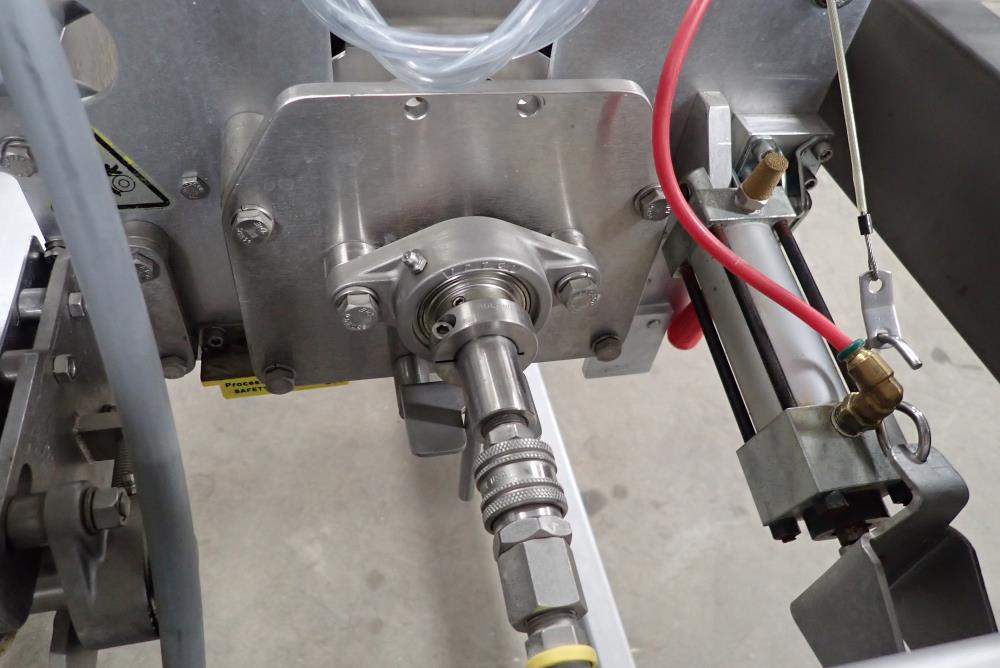

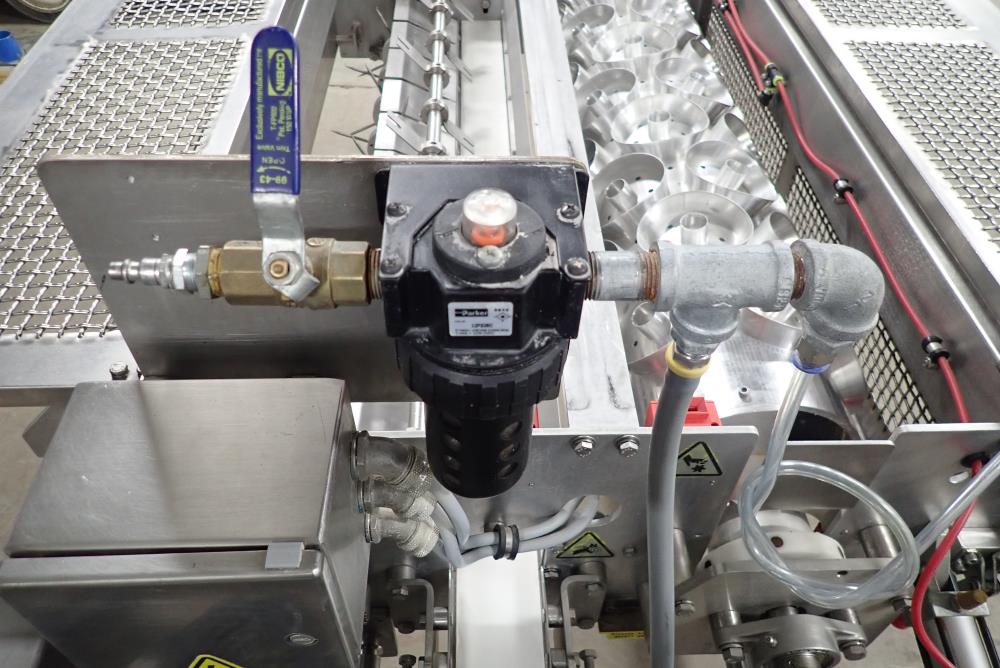

- Once the cutter-picker unit is properly installed on the conveyor, and the air is activated, the two air cylinders pull the unit down toward the conveyor bed, providing the appropriate pressure for cutting. Cylinders can be raised for transport.

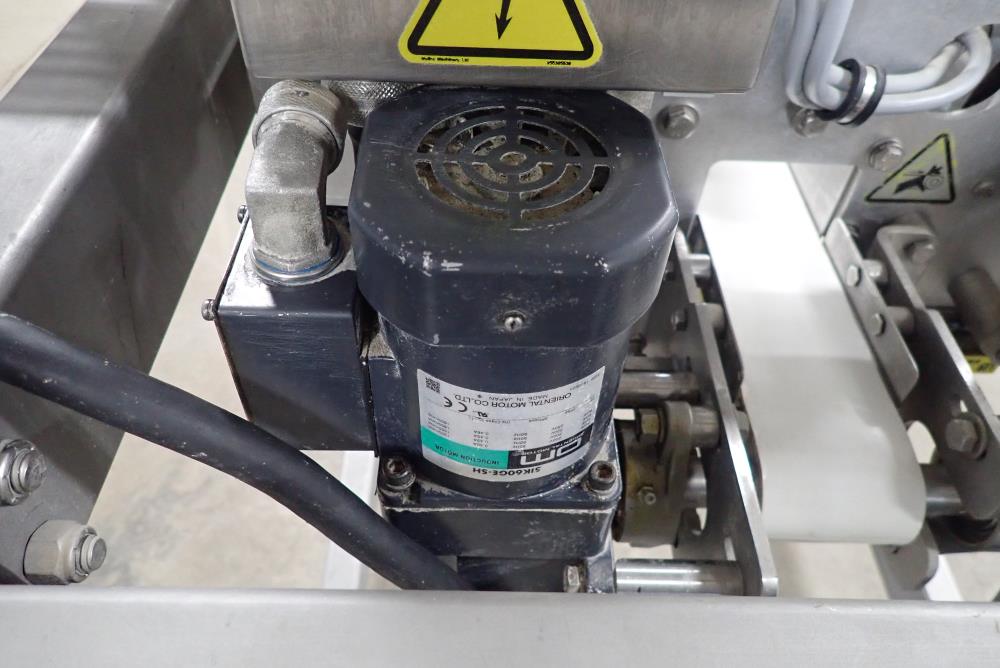

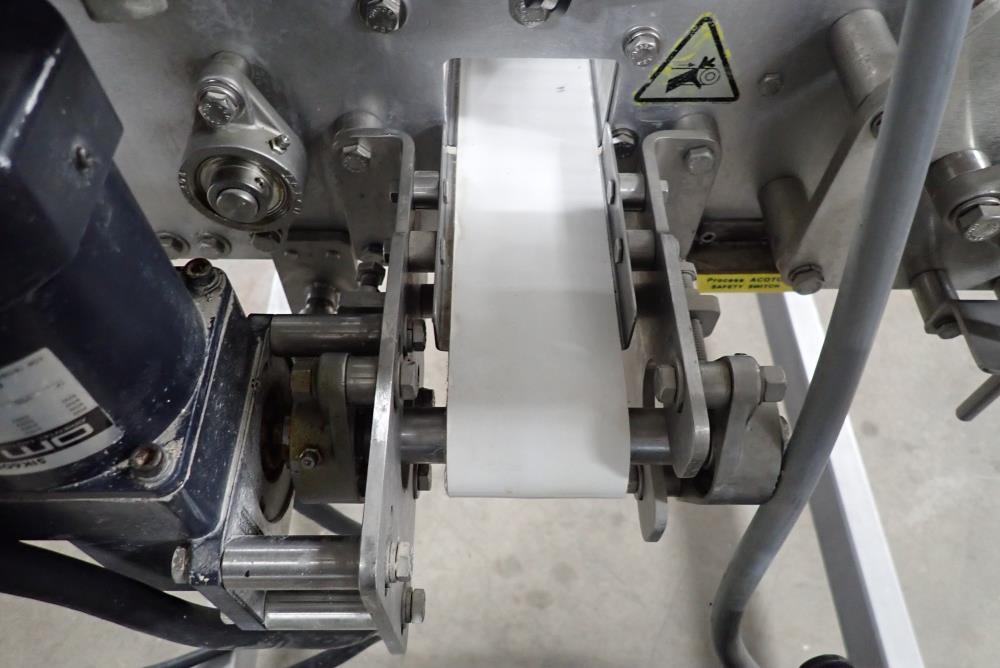

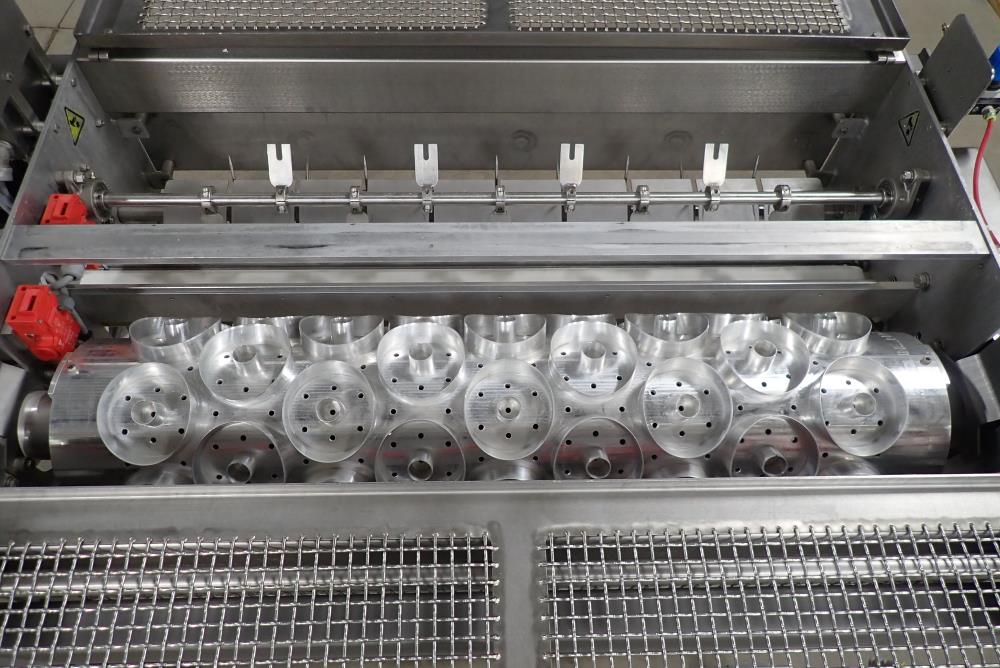

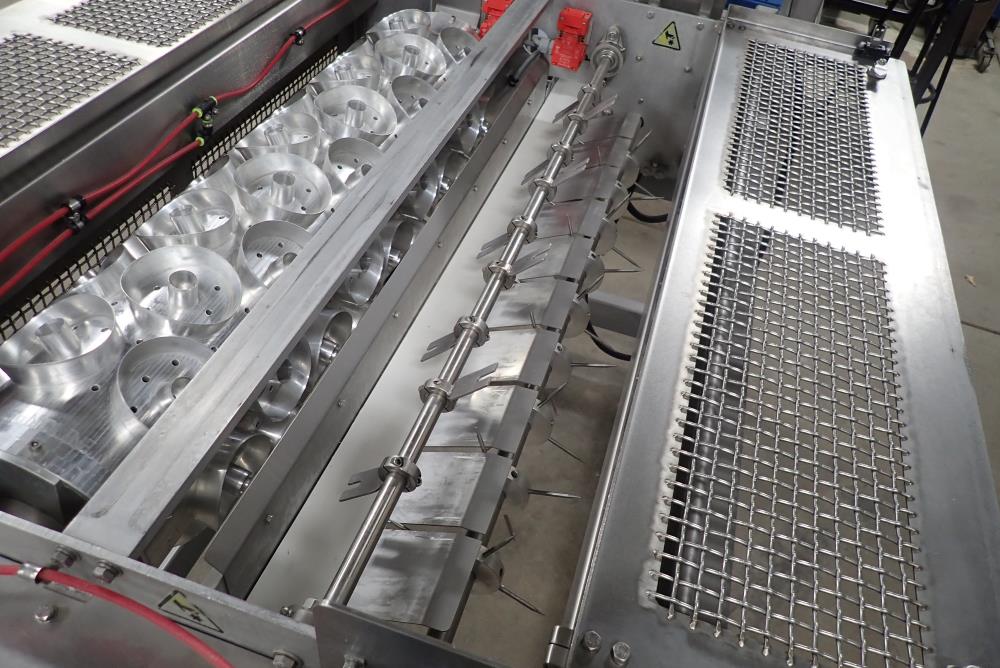

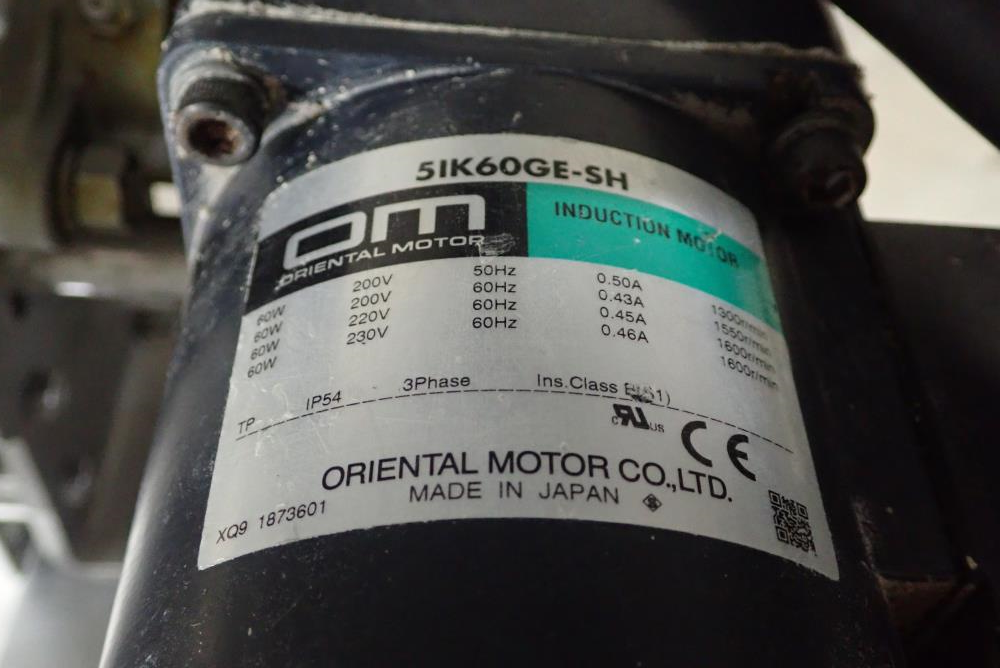

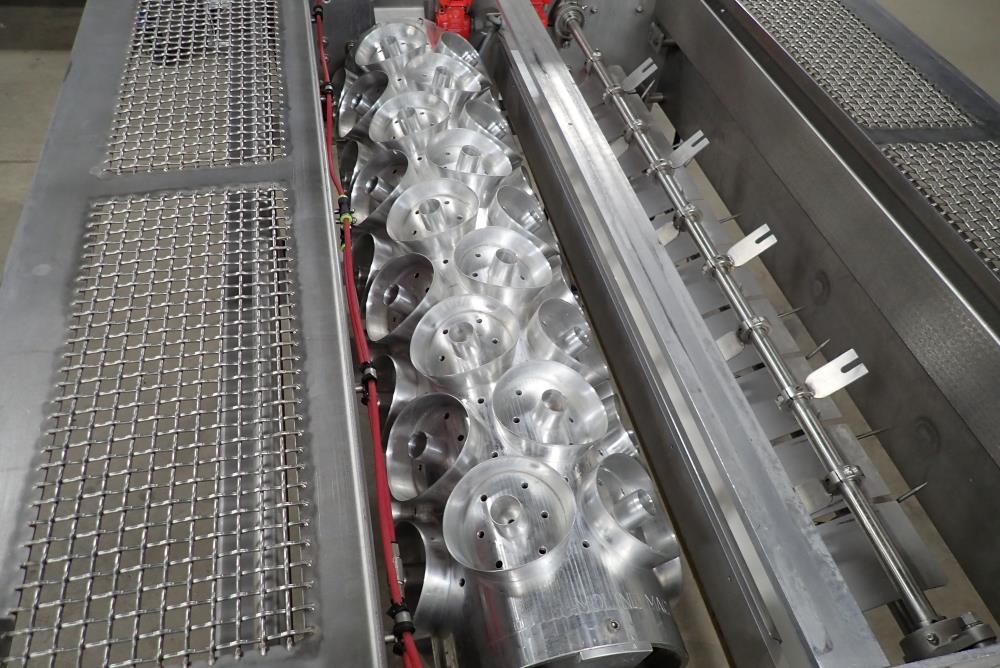

- The cutter is driven by the action of the dough sheet moving beneath it on the conveyor bed. When the cutter begins to rotate, a series of chains provide activation to the picker and paddle assemblies. The cross conveyor is activated by a gearmotor.
- The cutter is driven by the action of the dough sheet moving beneath it on the conveyor bed. When the cutter begins to rotate, a series of chains provide activation to the picker and paddle assemblies. The cross conveyor is activated by a gearmotor.
Specifications
Category :
Sub-Category :
Manufacturer :
Moline
Model :
CPU-43.250R SPL
Serial Number :
10-J274603
Material of Construction :
Stainless Steel
Condition :
Used
Overall Dimensions :
72 in. long x 42 in. wide x 50 in. tall
