North Star M40 Elite SS Flake Ice Machine

Item #: 5044007

ITEM SOLD

Sell Us Yours

Description

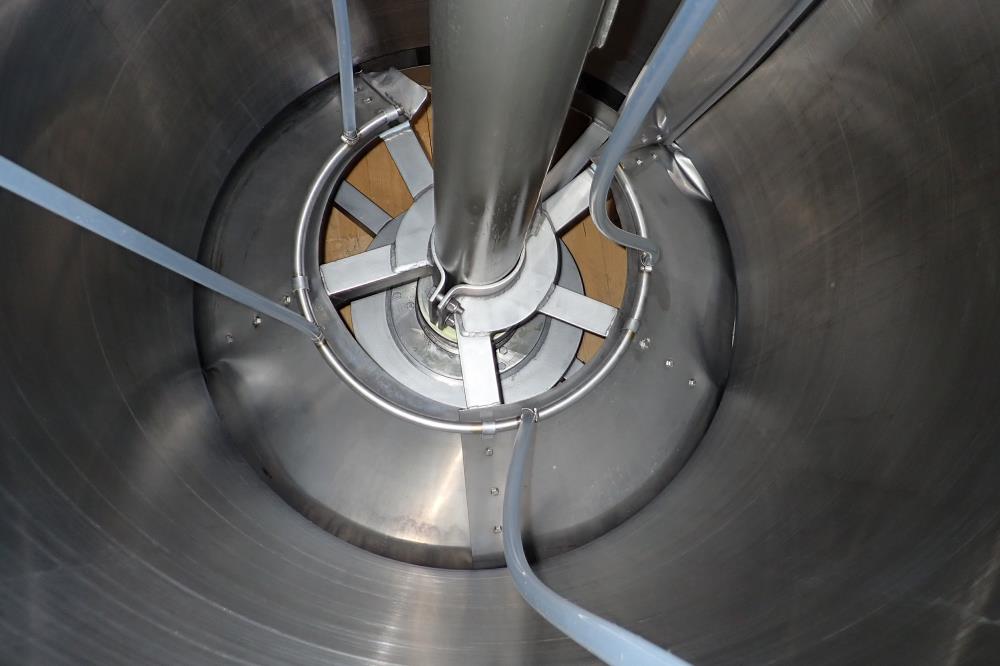

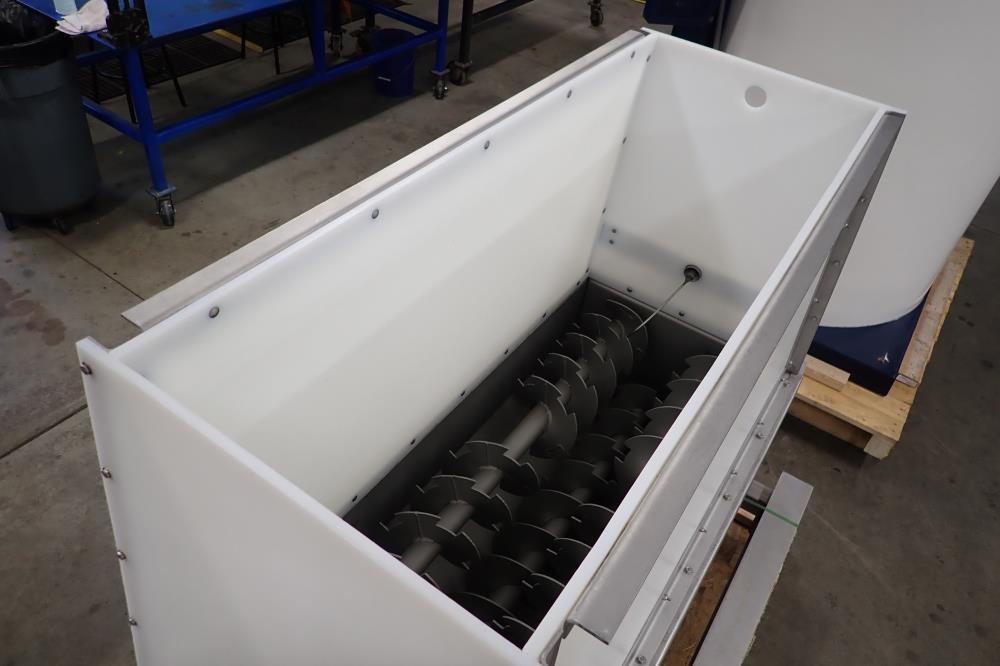

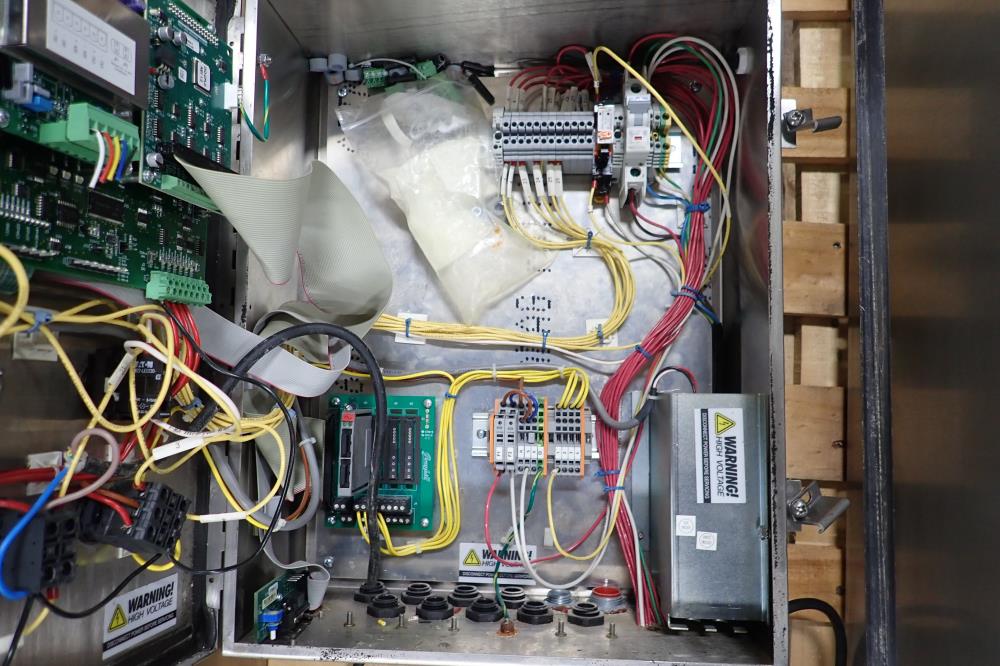

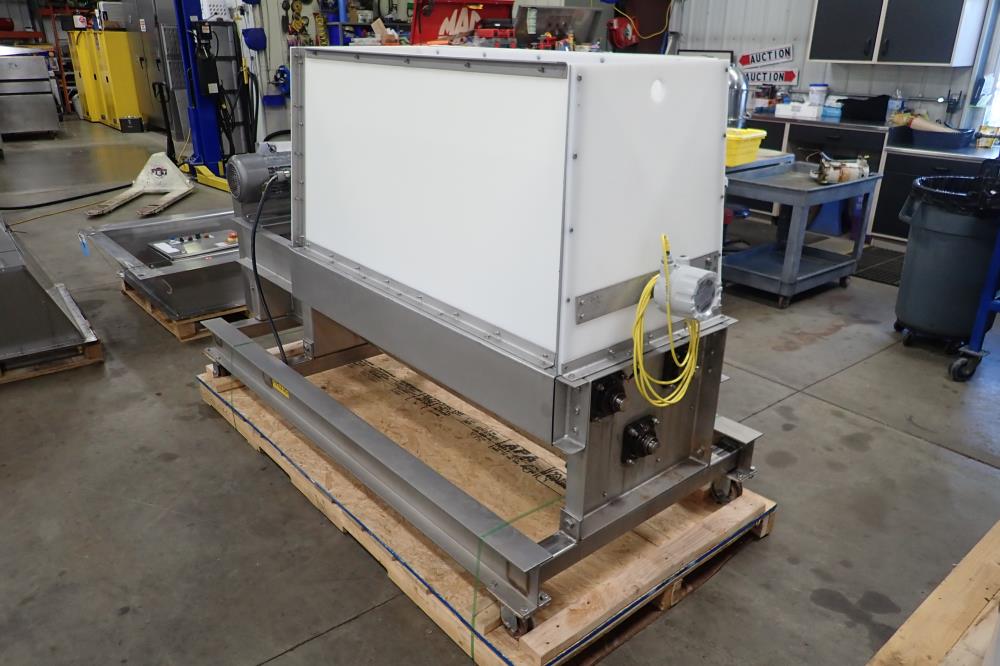

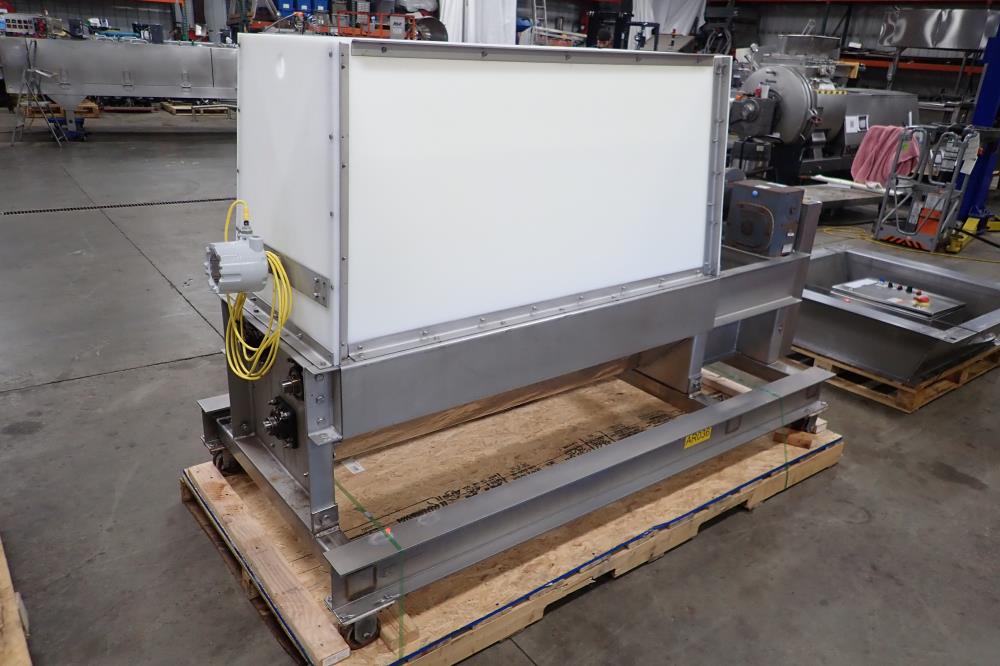

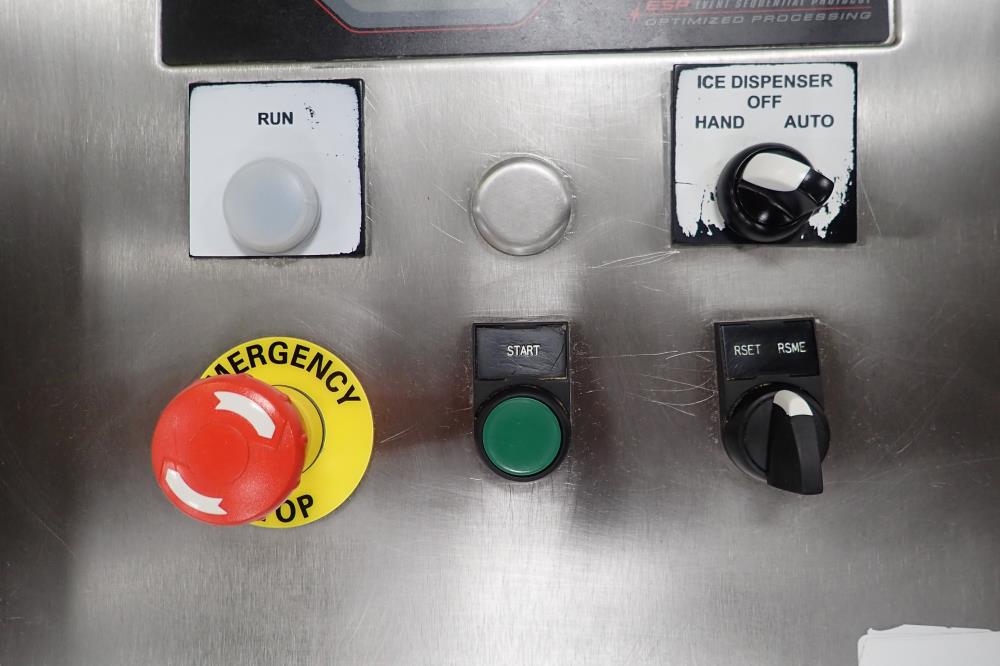

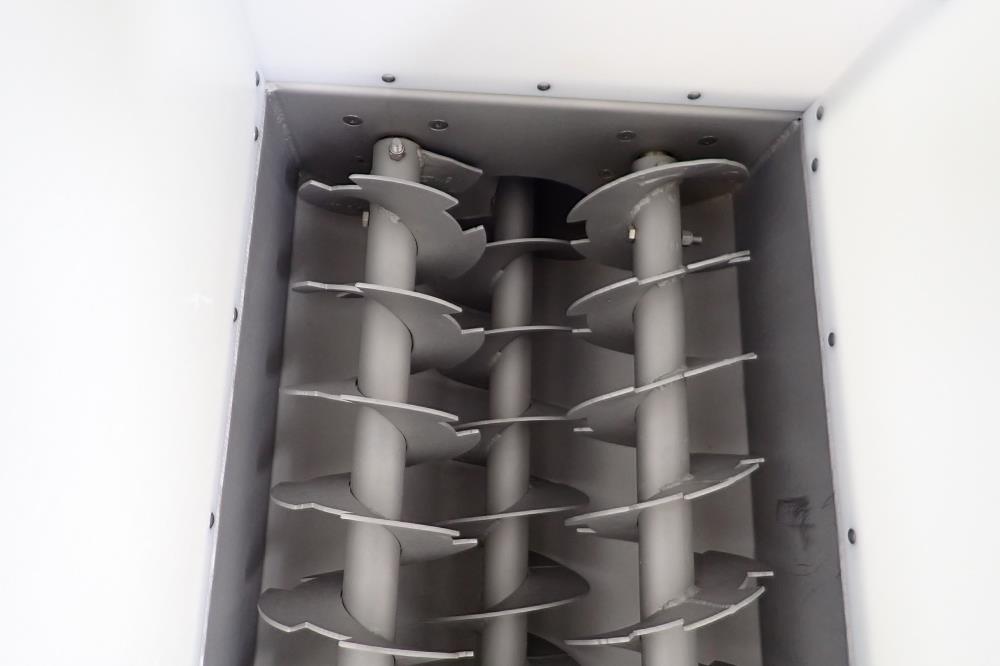

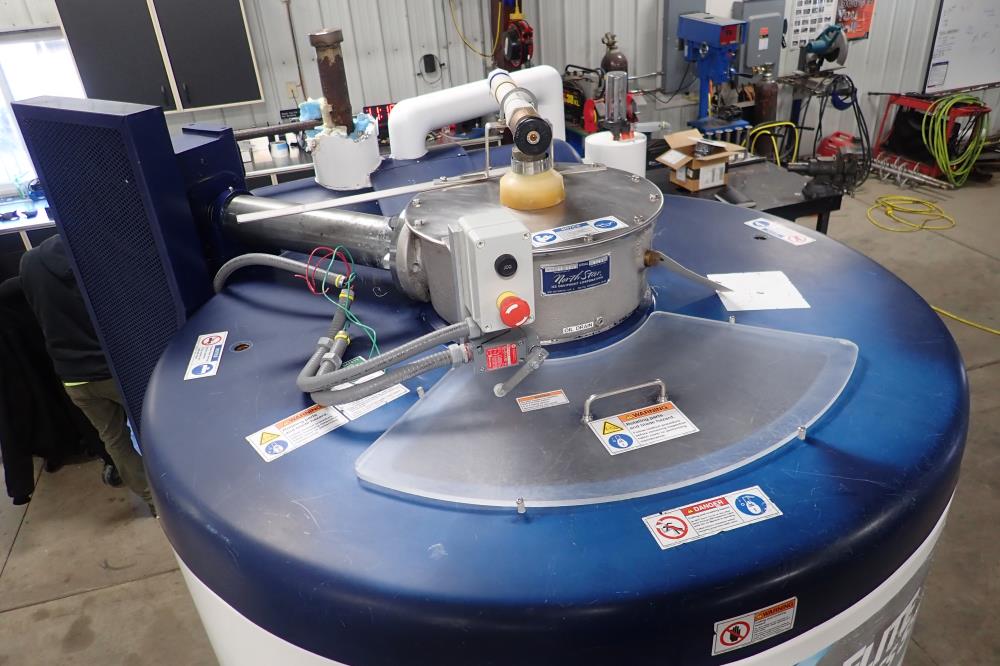

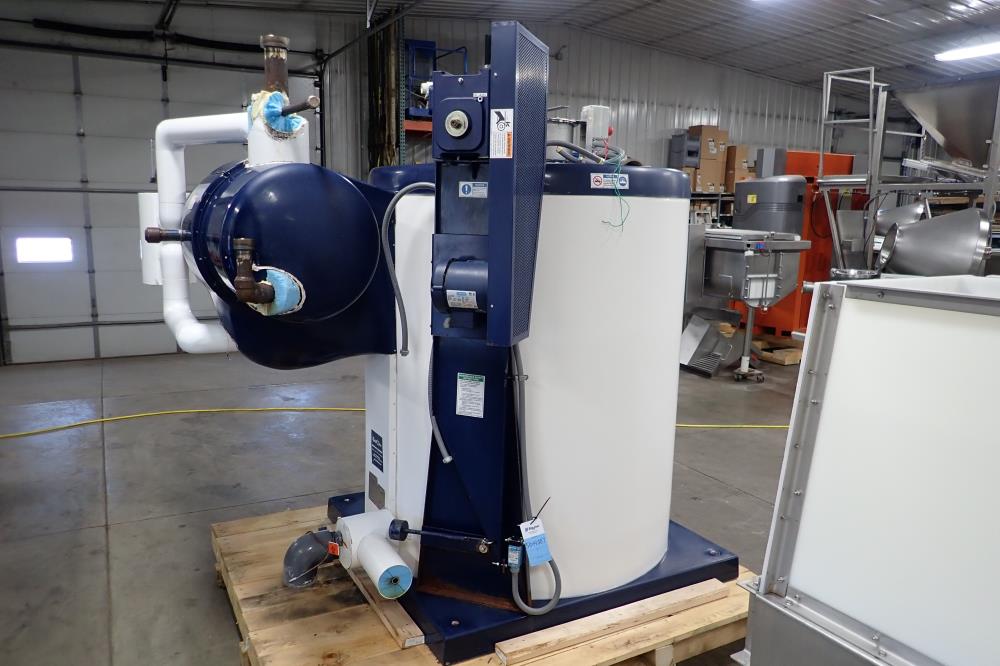

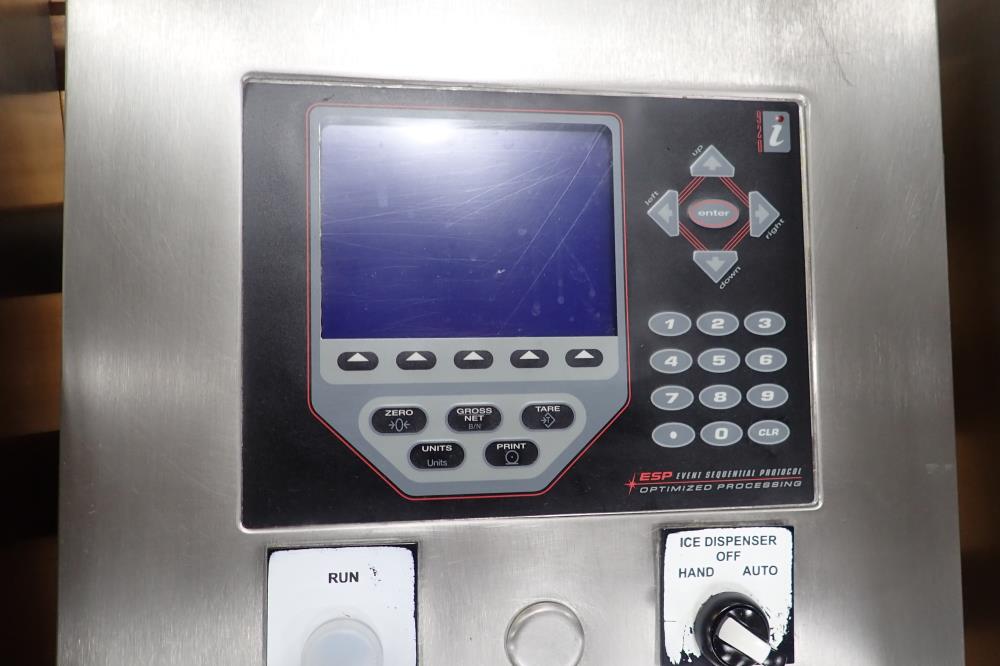

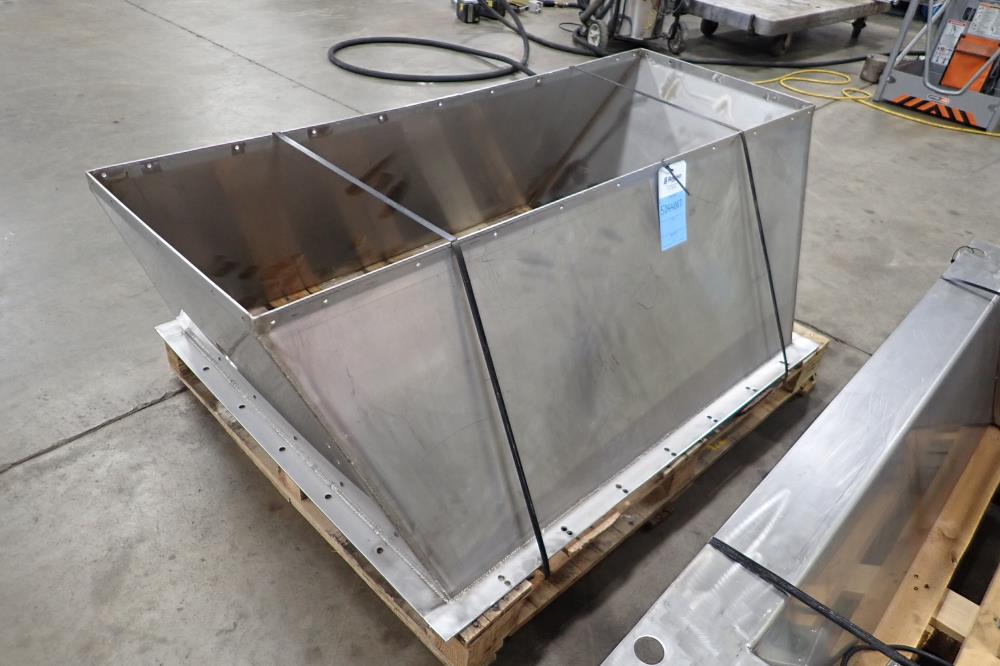

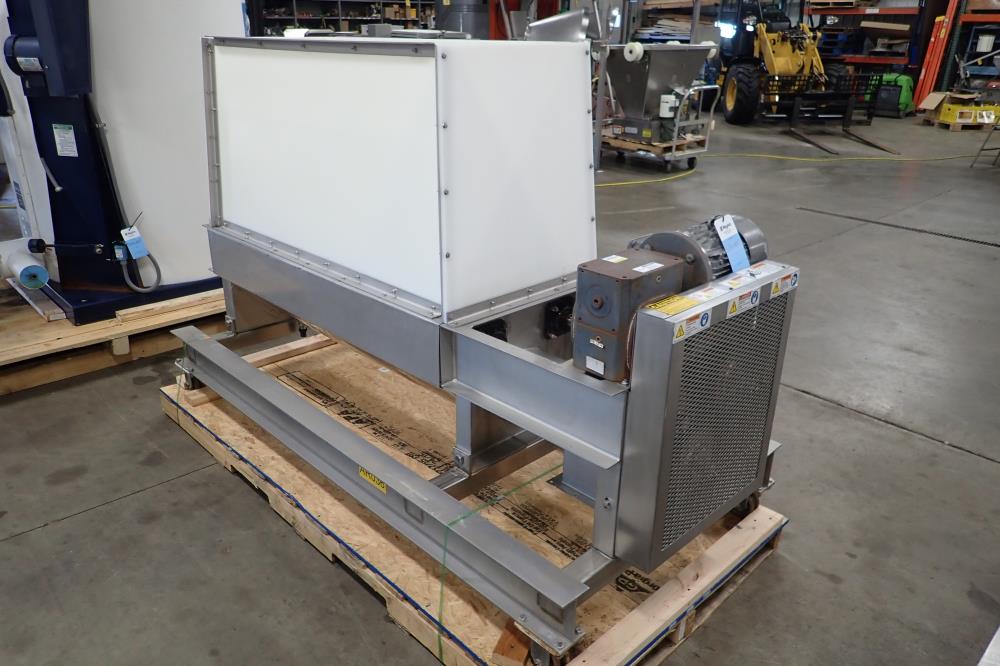

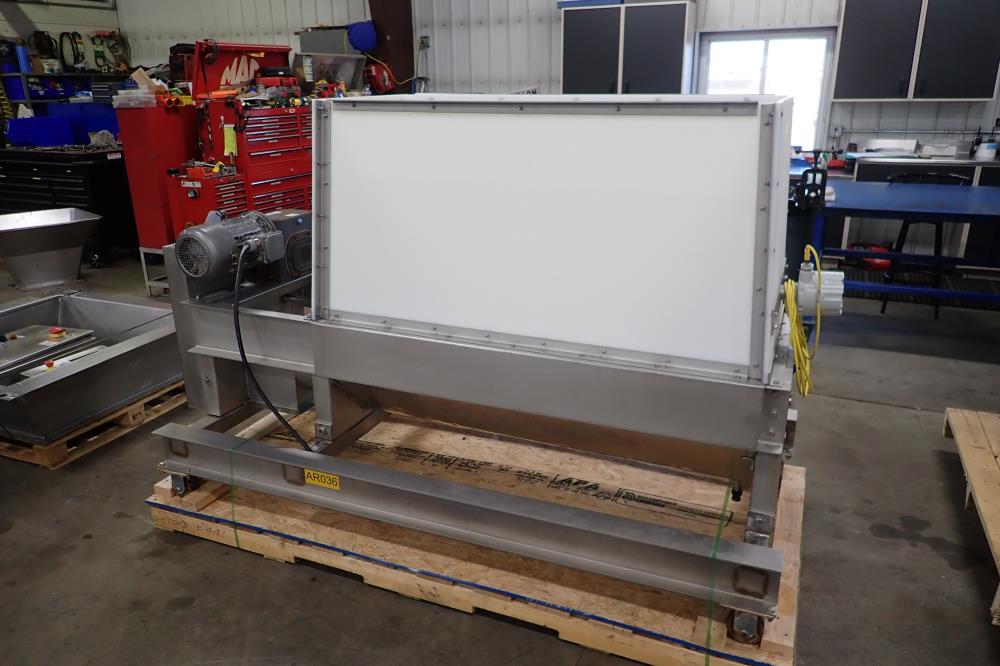

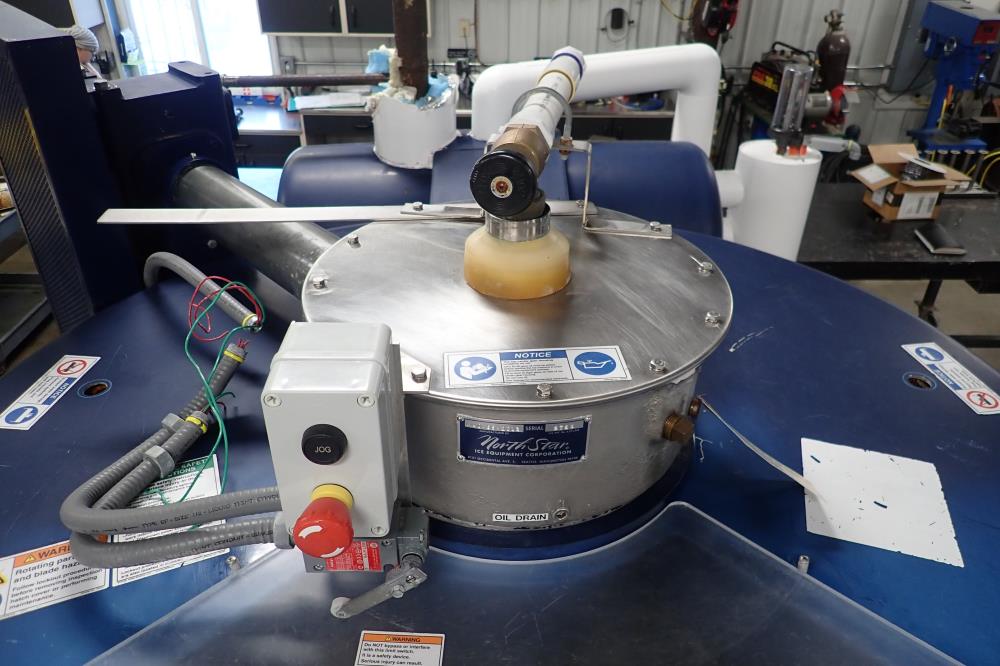

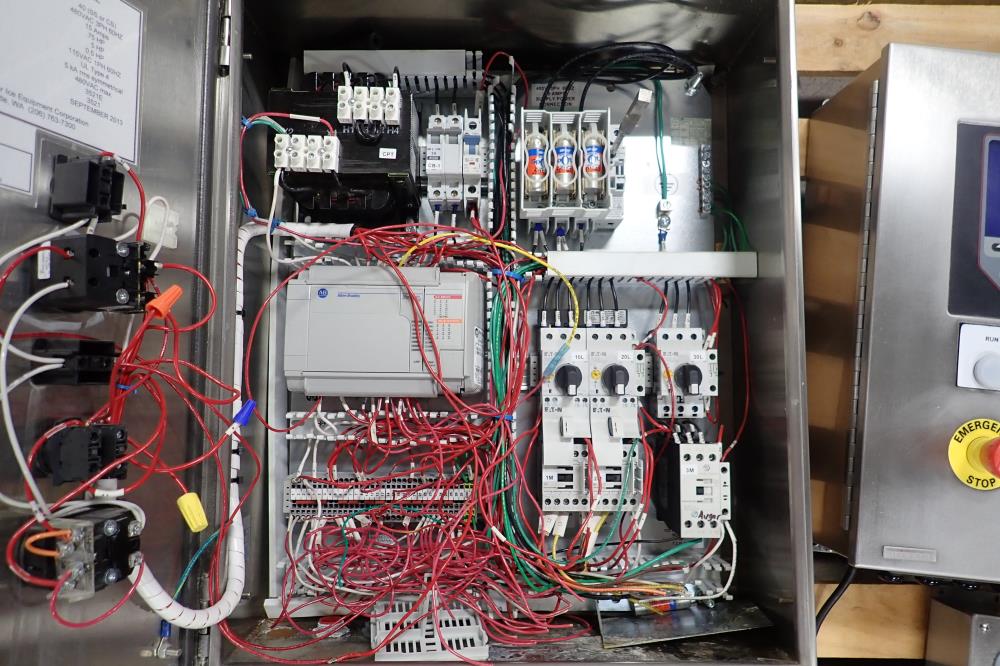

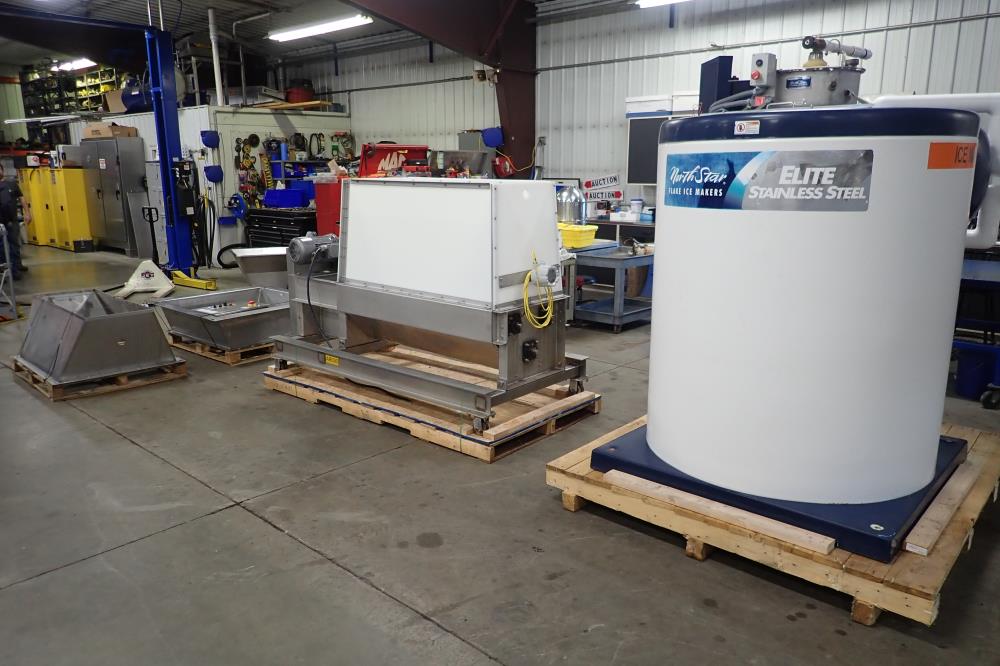

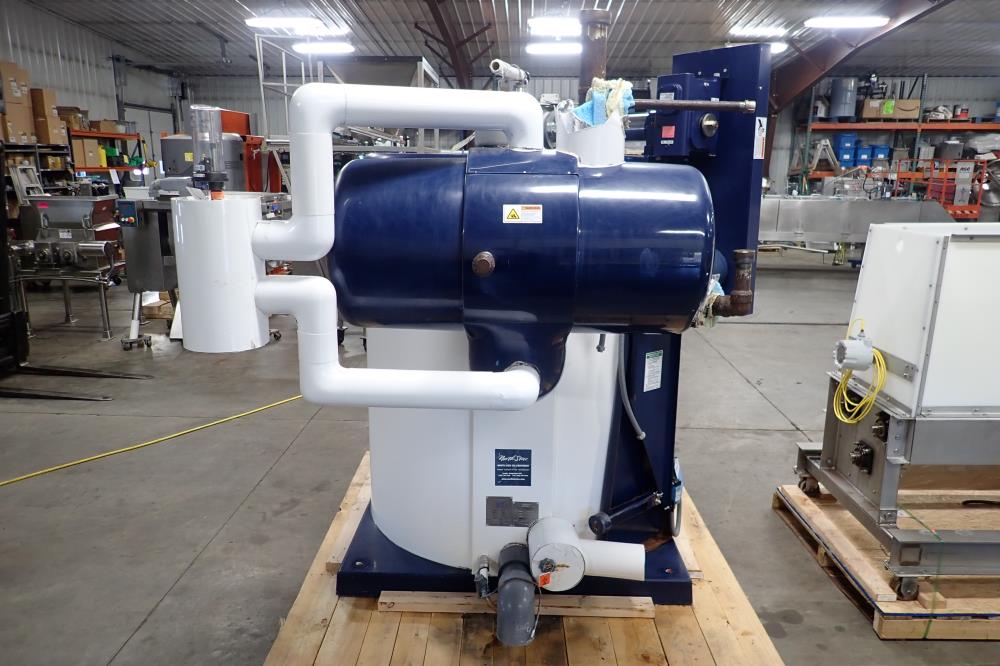

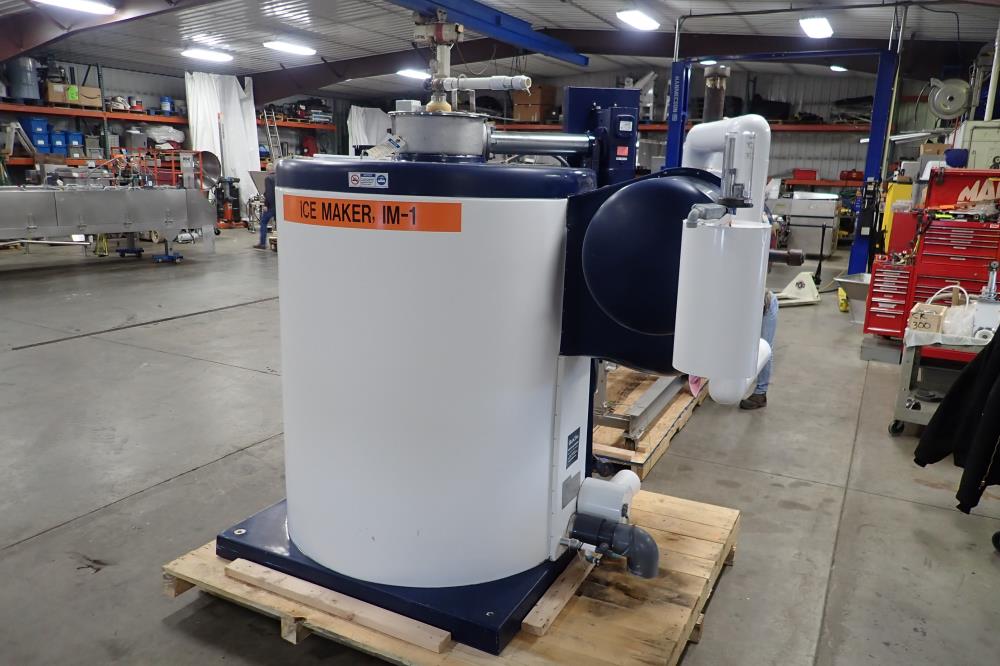

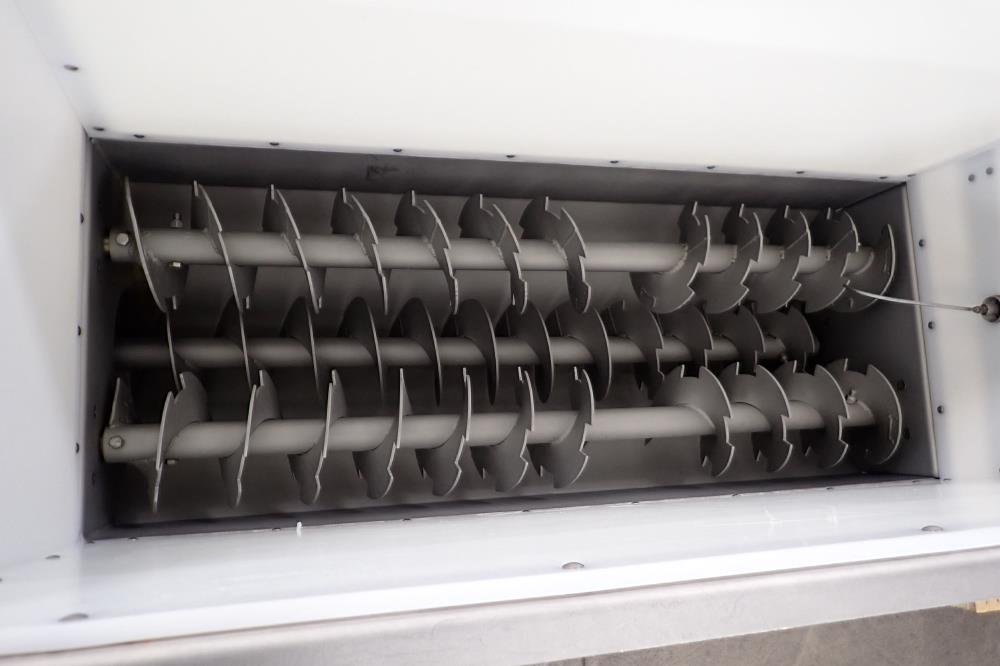

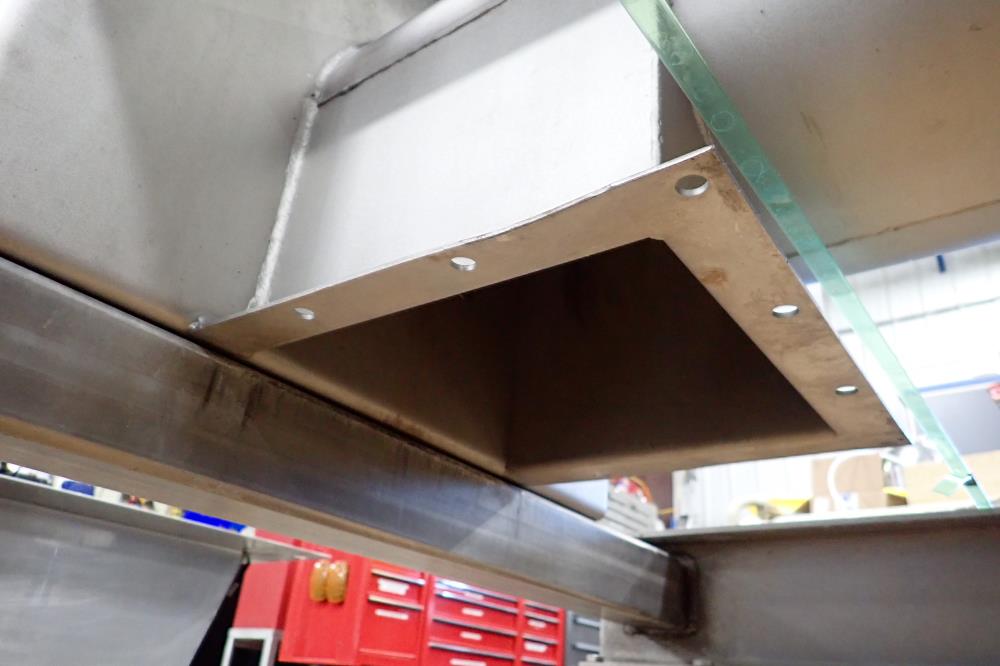

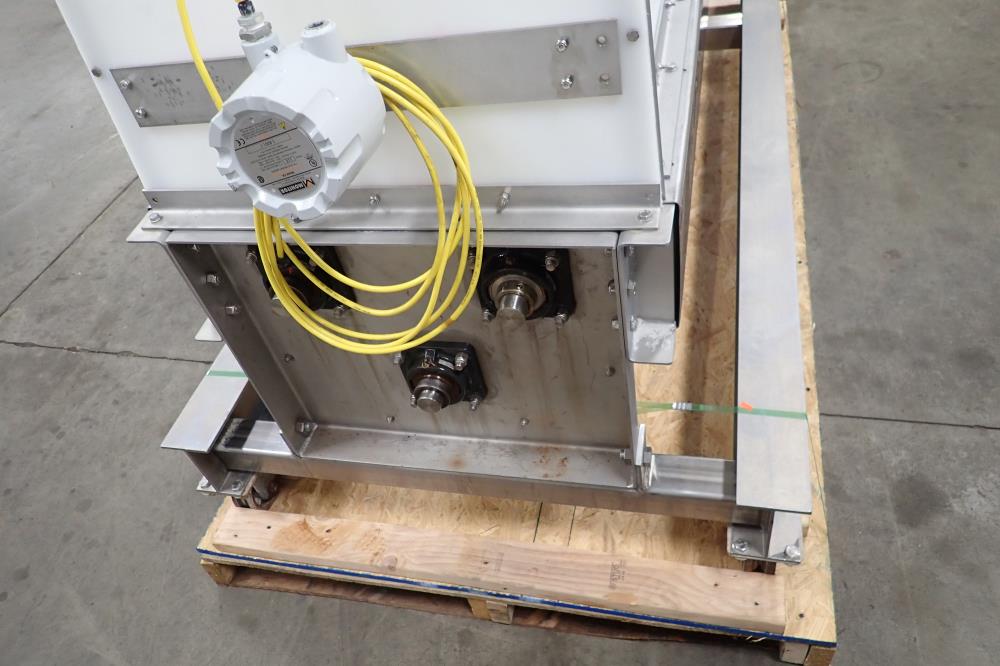

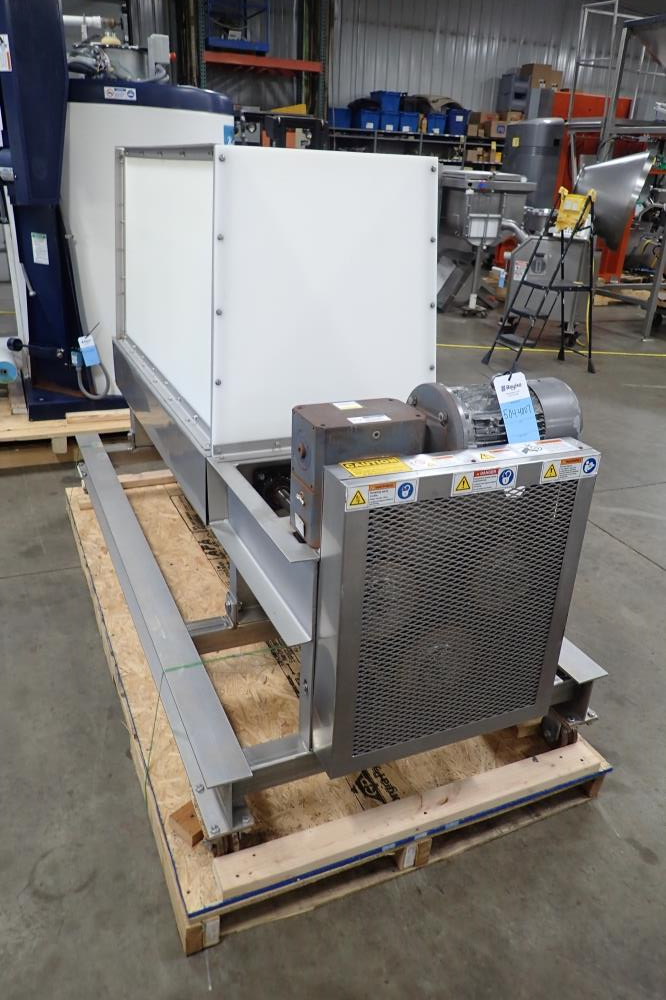

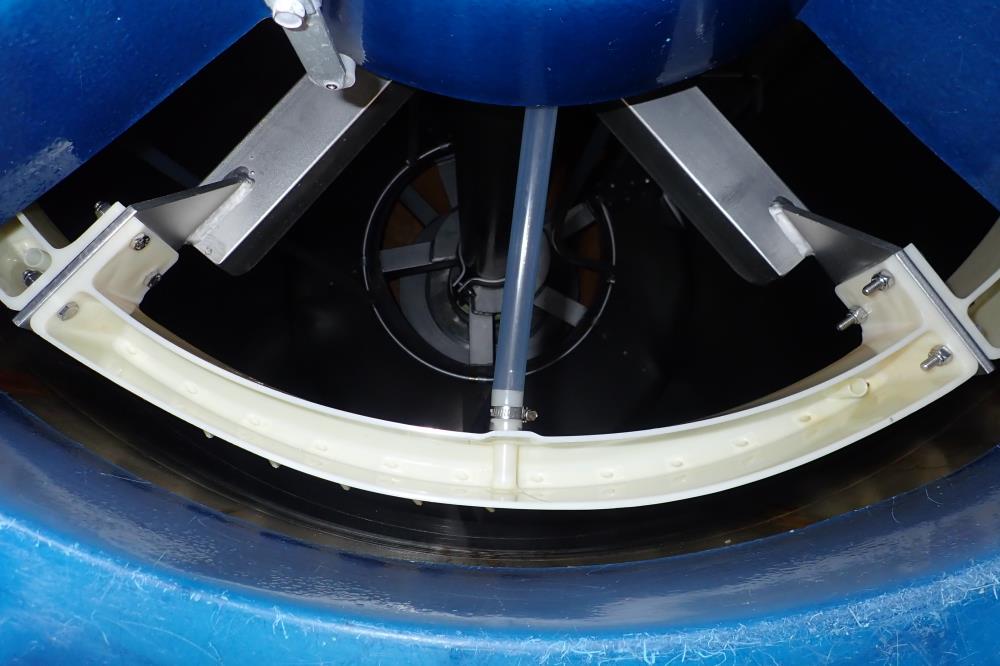

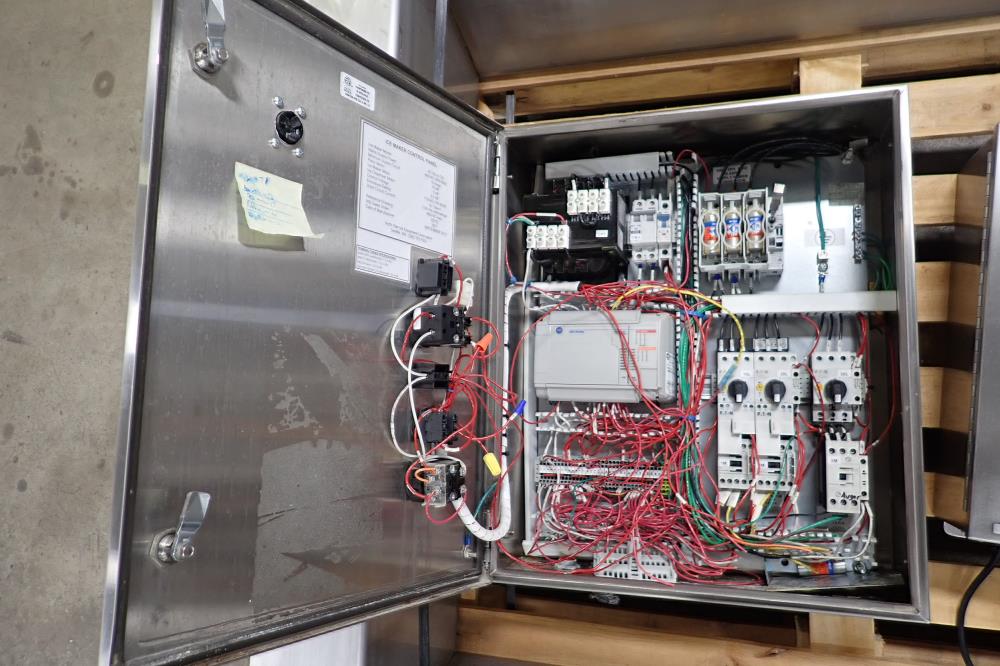

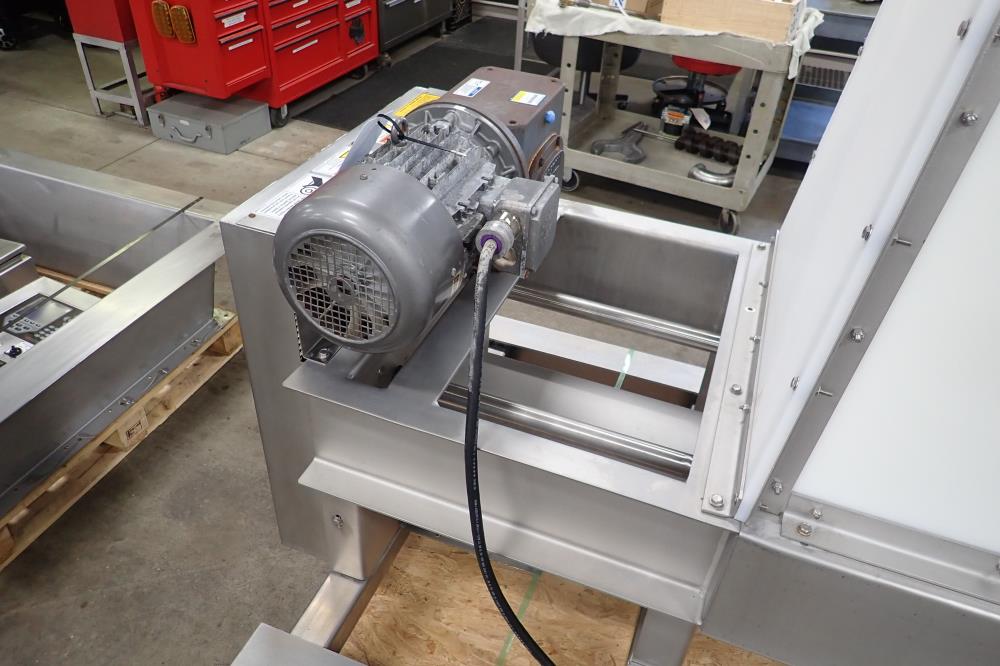

2013 North Star SS Elite ice flaker. Model 40 Elite SS flooded operation/ASME flake ice maker. Capacity up to 19.3 tons per 24 hours. Includes case ice dispenser, SS bottom, poly bin top. Hopper capacity 56 in. long x 20 in. wide x 47 in. deep. Poly top bin is 30 in. tall. (2) SS feed augers into (1) SS bottom feed auger. Bottom discharge to a 10 in. x 10 in. square discharge, with 10 in. clearance. Dispenser is mounted v-groove casters to slide in and out under the chute. SS chute that was mounted on a mezzanine for the ice machine to mount on, 43 in. x 43 in. x 12 in. deep. SS chute that mounts to the mezzanine chute and feeds the ice dispenser, 56 in. long x 20 in. wide x 20 in. deep. (2) SS control panels. Hand/auto feature for dispenser.

Capacity 19.3T (17.6 MT) **Capacity in US tons (T) and metric tons (MT) of ice per 24 hours based on -25ºF (-32ºC) evaporator temperature, ammonia refrigerant, 1.5mm ice thickness, and 60° F (16° C) water supply temperatures**

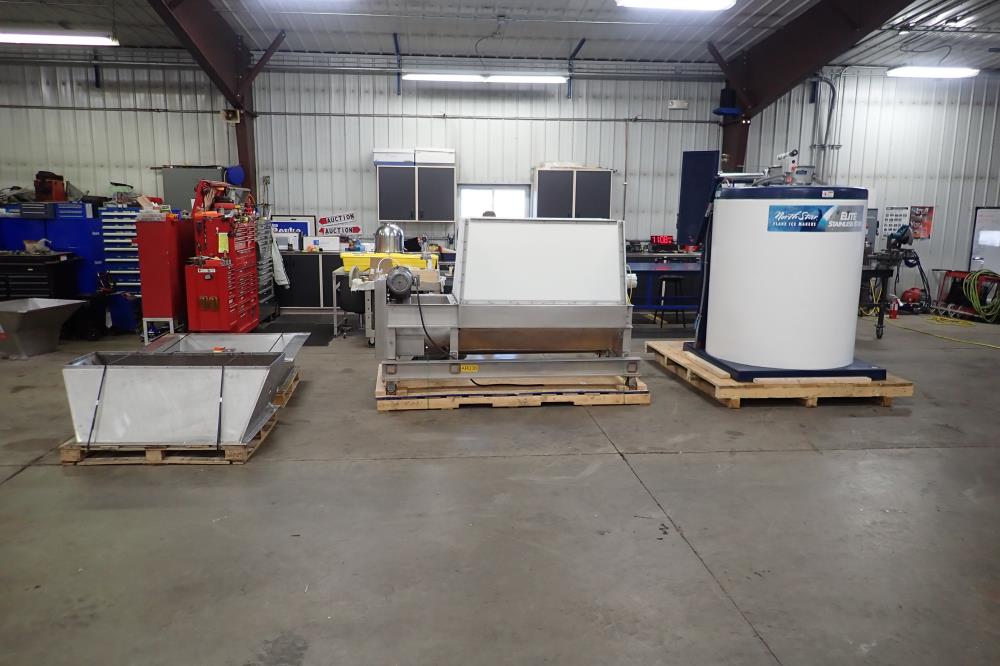

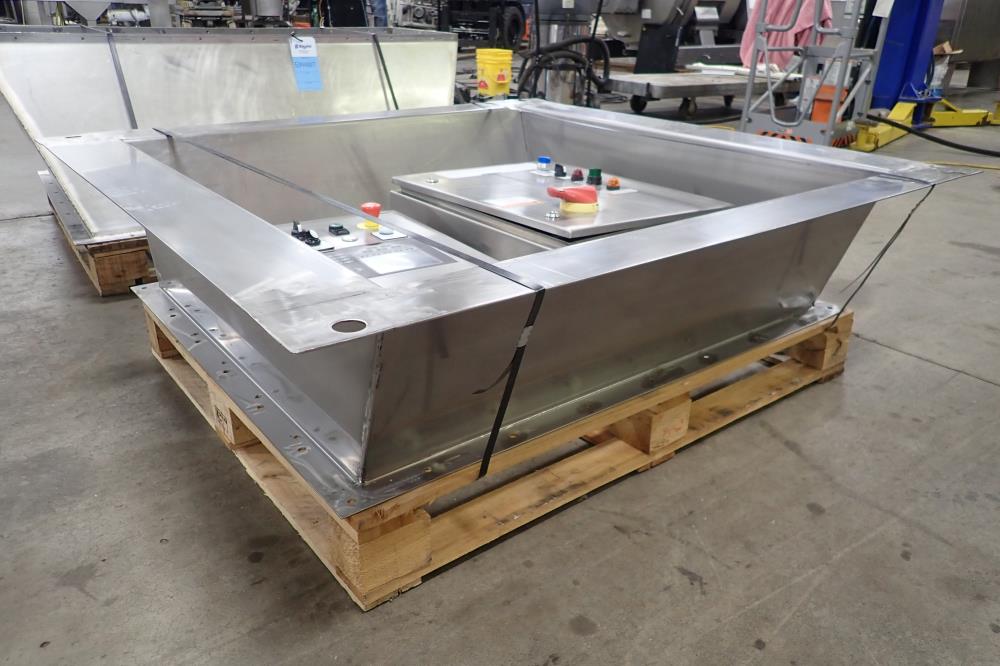

Overall dimensions and weights of skids: Ice flaker 72 in. long x 93 in. wide x 96 in. tall, 4532 lbs. Ice dispenser 98 in. long x 48 in. wide x 68 in. tall, 1513 lbs. Hopper with control panels 55 in. long x 52 in. wide x 19 in. deep, 263 lbs. Hopper 57 in. long x 42 in. wide x 26 in. tall, 180 lbs.

Specifications

Category :

Freezing/Cooling Systems

Sub-Category :

Ice Maker

Manufacturer :

North Star

Model :

Model M40-88-2013

Material of Construction :

Stainless Steel

Condition :

Used

Year Built :

2013
